Frozen Chicken with tunnel freezer compressor Condensing Unit from China first cold chain
- FOB Price
US $10000.01 - 2 set
US $5000.03 - 5 set
- group name
- Refrigeration Compressor for Cold Room/Quick Freezer
- Min Order
- 1 set
- brand name
- First cold chain + freeze food machine
- model
- Refrigeration compressor
- Nearest port for product export
- Tianjin Port, Shanghai Port, Ningbo Port, Qingdao Port
- Delivery clauses under the trade mode
- FOB, CFR, CIF, EXW, CIP, DDP, DAF
- Acceptable payment methods
- T/T, L/C
- update time
- Thu, 21 Nov 2024 18:44:23 GMT
Paramtents
Cooling System Water Cooling or Air Cooling
Condition New
Cylinder Position Horizontal
Refrigeration Valves Brands Valves
Transport Package Sea Worthy Packing
After-Sales Service Assisting Service
Certification ISO, CE, CCC
Specification CE ISO9001
Energy Efficiency Energy Efficiency and Environmental Protection
Packging & Delivery
-
Min Order1 set
Briefing
and good appearance.
Detailed

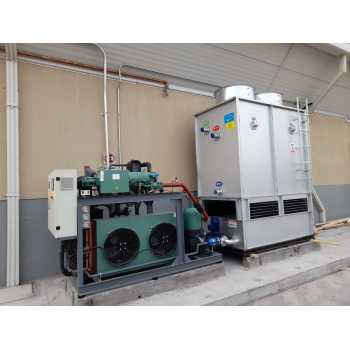

FSW500A tunnel freezer compressor unit
1、 Design basis
（1）、《Design code 》GB50072-2010；
（2）、《Heating ventilation and air-conditioning planning design code 》GB50019-2003；
（3）、《Refrigeration design handbook》；
（4）、 User requirement。
2、Design condition
（1）、Refrigerant：R507A；
（2）、Evaporating condensing temperature：-40/+40℃；
Equipment selection
1.Compressor unit operating parameter
Operation condition | Compressor unit type | Refrigerating capacity | Electric power |
|---|---|---|---|
-40/+40℃ | Bitzer HSN8561-110Y | 91.8Kw | 96.8Kw |
Choose Screw Germany compressor 1set：Bitzer HSN8561-110Y
2、Evaporative type condenser
Type：ZFLA-650 Evaporative condenser.
3、Electrical control system ：main electrical element are Schneider.
1.Compressor unit parameter
Compressor unit name | unit | Screw compressor unit | |
|---|---|---|---|
Compressor unit type | PSHL-110 | ||
Compressor | 1set | Bitzer HSN8561-110Y | |
Compressor | Theory Displacement | m3/h | 433m3/h 60HZ |
Energy Adjustable range | 100%-75%-50% | ||
Refrigerant | type | R507A | |
Design conditions | ℃ | -40℃/40℃ | |
Refrigeration capacity | KW | 91.8KW | |
Voltage and power | 3N/60Hz/220V 96.8KW | ||
Oil cooler | Air liquid cooling | ||
Overall dimensions(L*W*H) | mm | 2650×1500×1600 | |
Unit weight | kg | ～1250 | |
2. Evaporative type condenser parameter：
Type | ZFLA650 | |
|---|---|---|
Heat exhaust (kw) | 650 | |
Fan | Quantity | 2sets |
Blowing rate（m3/h） | 40000m3/h | |
Power(kw) | 2×1.5KW | |
Water pump | Power（KW） | 2.2kw×1set |
Overall dimensions（mm）L*W*H | 2200×1600×3760mm | |
Operating weight KG | 4000 | |
