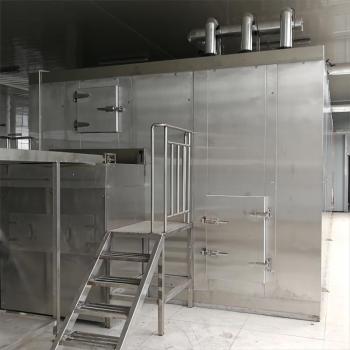

The IQF Freezer machine for quick freezing all kinds of fruit & vegetable and some of the seafood
Using high efficiency centrifugal fan ,make the product freeze fast in vibration floating state.
Achieve the product of the individually quick frozen.ensure the product freezing effect.
The whole freezing process achieve full closure fast freezing ,avoid product from turning out the belt.
the 1000kg/h Fluidized iqf freezer parameters as follow:
frozen product :blueberries
capacity: 1000kg/h
cooling capacity: 170kw (±40℃）
refrigerant :R404A/R507A/R717
inter/out temperature: +15/-18℃
inside room temperature:-38±3℃
freeze time :6-30min (adjust)
the spiral freezer body size: 11*4.2*3m
the materials use full stainless steel structure SUS304
the evaporator use high effective large anti-rust aluminum finned tube group, the rest of the 304 stainless steel.
the Electric Control Cabinet use Schneider Electric
the panels use double face stainless steel and Self-extinguishing Flame Retardant Polyurethane 150mm Thickness
the conveyor belt we could use 1200mm etc ,according to clients choice.Food-grade stainless steel belt;
Frequency conversion stepless speed regulation
Fan and Motor use high wind volume stainless steel centrifugal fan low noise fan and waterproof motor
Refrigeration system we adopt bitzer brand screw compressor unit.ensure the freeze effective
