Full automatic FPL1000 Frozen French Fries Processing line for fries process

FOB Price

US $150000.01 - 1 set

US $20000.02 - 5 set

group name: Frozen french fries products line

Min Order: 1 set

brand name: First cold chain + freeze food machine

model: FSLD1000

Nearest port for product export: Tianjin Port, Shanghai Port, Ningbo Port, Qingdao Port

Delivery clauses under the trade mode: FOB, CFR, CIF, EXW, CIP, DDP, DAF

Acceptable payment methods: T/T, L/C

update time: Thu, 21 Nov 2024 17:41:56 GMT

contact supplier

Paramtents

Material 304 stainless steel
Power source Electric
Size Customized
Voltage 380V
Specification CE ISO9001
Transport Package Seaworthy Plywood Case

Packging & Delivery

Min Order1 set

Briefing

Frozen french fries production line/potato chips making machine

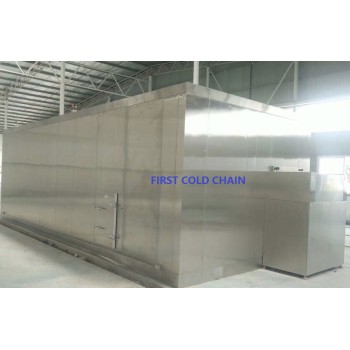

full automatic processing line ,adopt Fluidized IQF freezer.

Detailed

Features of Frozen French Fries Processing line

♡ Various choices. We supply100~1000 kg/h for customers.
♡ Longer service life. Stainless steel to guarantee a longer service life for processing larger quantity of French fries.
♡ High efficiency and energy saving. Excellent quality and Low oil consumption.
♡ Easy operation and multifunctional usage.
♡ Comparative price and high rate of profitable return.

Equipment name	Equipment introduced
feeding machine	use:It can separate the stones from the potatoes. features: sus 304, easy maintenance, easy cleaning no rust (3) technical parameters: Size: 30006001500mm Power: 0.37KW/380v/50Hz Mesh belt width: 600 mm Frame: 50502mm rectangle stainless steel square tube
washing and peeling machine	(1) use: wash and peel potatoes (2) features: spiral discharge to achieve continuous production, imported nylon wool roller, durable, stainless steel frame structure. (3) technical parameters: Dimensions: 32007601650mm, wool roller length: 2.8meters Power: 4.75kw /380v/ 50Hz

Equipment name

Equipment introduced

feeding machine

use:It can separate the stones from the

potatoes.

features: sus 304, easy maintenance, easy cleaning no rust

(3) technical parameters:

Size: 3000*600*1500mm

Power: 0.37KW/380v/50Hz

Mesh belt width: 600 mm

Frame: 50*50*2mm rectangle stainless steel square tube

washing and

peeling

machine

(1) use: wash and peel potatoes

(2) features: spiral discharge to achieve continuous production, imported nylon wool roller, durable, stainless steel frame structure.

(3) technical parameters:

Dimensions: 3200*760*1650mm,

wool roller

length: 2.8meters

Power: 4.75kw /380v/ 50Hz

	Wool roll: 9 pcs (4) material disposition Drive motor: motor, discharge motor Spiral teeth: stainless steel plate bending production Other material: 304 stainless steel plate, welding and shearing and bending
3.Pick line	(1) use: after cleaning the peeled potatoes for artificial selection, removal of non clean areas, as well as substandard materials (2) features: smooth running, stainless steel frame structure, easy maintenance, easy cleaning. (3) technical parameters: Dimensions: 5000600750mm Power: 1.1kw /380v/ 50Hz Conveyor belt width: 600 mm, (4) material disposition Drive motor: worm gear motor Conveyor belt: PVC mesh belt Frame: 50502mm rectangle stainless steel square tube
4.Lifting machine	(1) use: after the artificial selection of potatoes into the strip cutting machine for cutting (2) features: smooth running, stainless steel frame structure, easy maintenance, easy cleaning. (3) technical parameters: Dimensions: 20006001350mm Power: 0.75kw /380v/ 50Hz Conveyor belt width: 500 mm, (4) material disposition Drive motor: worm gear motor Conveyor belt:sus 304 mesh belt Frame: 50502mm rectangle stainless steel square tube

Wool roll: 9 pcs

(4) material disposition

Drive motor: motor, discharge motor

Spiral teeth: stainless steel plate bending production

Other material: 304 stainless steel plate, welding and shearing and bending

3.Pick line

(1) use: after cleaning the peeled potatoes for artificial selection, removal of non clean areas, as well as substandard materials

(2) features: smooth running, stainless steel frame structure, easy maintenance, easy cleaning. (3) technical parameters:

Dimensions: 5000*600*750mm

Power: 1.1kw /380v/ 50Hz

Conveyor belt width: 600 mm,

(4) material disposition

Drive motor: worm gear motor

Conveyor belt: PVC mesh belt

Frame: 50*50*2mm rectangle stainless steel square tube

4.Lifting

machine

(1) use: after the artificial selection of potatoes into the strip cutting machine for cutting

(2) features: smooth running, stainless steel frame structure, easy maintenance, easy cleaning.

(3) technical parameters:

Dimensions: 2000*600*1350mm

Power: 0.75kw /380v/ 50Hz

Conveyor belt width: 500 mm,

(4) material disposition

Drive motor: worm gear motor

Conveyor belt:sus 304 mesh belt

Frame: 50*50*2mm rectangle stainless steel square tube

5.Cut machine	(1) use: after cleaning the peeled potatoes cut strip processing (2) features: imported from Taiwan, blade durable, smooth operation. Cut into the rinsing machine directly into the rinsing process. (3) technical parameters: Dimensions: 1070560900mm Power: 1.5kw /380v/ 50Hz Cut size: 7-16mm (4) material disposition Motor: Motor Frame material: aluminum alloy
6.Washing machine	(1) use: Rinse potato strips ,remove excess starch. (2) features: smooth running, stainless steel frame structure, easy maintenance, easy cleaning. (3) technical parameters: Dimensions: 600010001300mm Power: 1.5kw /380v/ 50Hz, fan power:6kw/380v/50hz Mesh belt width:600mm (4) material disposition Frame: 50502mm rectangle stainless steel square tube
7.blanching machine	(1)use:use60-95 degrees hot water blanching fries, remove starch, bleaching hot color. (2)features:diesel heating,with the overall lifting function, easy to clean,maintenance,easy to clean. (3) technical parameters: Dimensions: 80001000950mm Power:5.3kw/380v/50Hz, transmission: 1.5kw,circulating water pump: 3kw, Lift power:1.1kw,diesel heating power:300000kcal Conveyor belt width: 800 mm, (4) material disposition Conveyor belt: stainless steel mesh belt Frame: 50502mm rectangle stainless steel square tube

5.Cut machine

(1) use: after cleaning the peeled potatoes cut strip processing

(2) features: imported from Taiwan, blade durable, smooth operation. Cut into the rinsing machine directly into the rinsing process.

(3) technical parameters:

Dimensions: 1070*560*900mm

Power: 1.5kw /380v/ 50Hz

Cut size: 7-16mm

(4) material disposition

Motor: Motor

Frame material: aluminum alloy

6.Washing

machine

(1) use: Rinse potato strips ,remove excess starch.

(2) features: smooth running, stainless steel frame structure, easy maintenance, easy cleaning.

(3) technical parameters:

Dimensions: 6000*1000*1300mm

Power: 1.5kw /380v/ 50Hz,

fan power:6kw/380v/50hz

Mesh belt width:600mm

(4) material disposition

Frame: 50*50*2mm rectangle stainless steel square tube

7.blanching

machine

(1)use:use60-95 degrees hot water blanching fries, remove starch, bleaching hot color.

(2)features:diesel heating,with the overall lifting function, easy to clean,maintenance,easy to clean.

(3) technical parameters:

Dimensions: 8000*1000*950mm

Power:5.3kw/380v/50Hz, transmission: 1.5kw,circulating water pump: 3kw,

Lift power:1.1kw,diesel heating power:300000kcal

Conveyor belt width: 800 mm,

(4) material disposition

Conveyor belt: stainless steel mesh belt

Frame: 50*50*2mm rectangle stainless steel square tube

8.Vibrating	(1) use: remove the not good strips and water. (2) features: smooth running, stainless steel frame structure, easy maintenance, easy cleaning. (3) technical parameters: Dimensions: 2000800950mm power: 0.24kw /380v/ 50Hz, width: 800 mm, (4)material disposition 2mm stainless steel plate
9.dewatering machine	(1) use: to remove the water after blanching the surface of excess water, (2)features:smooth running, stainless steel frame structure, easy maintenance,easy cleaning. (3) technical parameters: Dimensions: 500010001150mm. Total power: 3.75kw /380v/ 50Hz, transmission: 0.75kw,fan: 0.754 Conveyor belt width: 600 mm, (4) material disposition Drive motor: worm gear motor Conveyor belt: stainless steel mesh belt Frame: 5050*2mm rectangle stainless steel square tube
10.Frying machine	(1) use: It can fry the potato strips. (2) features: with oil storage tank, with a coarse filter, with smoke hood, the temperature of 0-220C can be adjusted, frying time variable frequency speed regulation. (3) technical parameters: Dimensions: 900010002100mm transmission power: 1.5kw, oil pump: 1.5kw4， lift power: 1. 1kw ,diesel heating power:4800000kcal, Conveyo rbel twidth:600mm, (4) material disposition Drive motor: worm gear motor Conveyor belt: stainless steel mesh belt Frame: 5050*2mm rectangle stainless steel square tube.

8.Vibrating

(1) use: remove the not good strips and water.

(2) features: smooth running, stainless steel frame structure, easy maintenance, easy cleaning.

(3) technical parameters:

Dimensions: 2000*800*950mm

power: 0.24kw /380v/ 50Hz, width: 800 mm,

(4)material disposition 2mm stainless steel plate

9.dewatering

machine

(1) use: to remove the water after blanching the surface of excess water,

(2)features:smooth running, stainless steel

frame structure, easy maintenance,easy cleaning. (3) technical parameters:

Dimensions: 5000*1000*1150mm.

Total power: 3.75kw /380v/ 50Hz,

transmission: 0.75kw,fan: 0.75*4

Conveyor belt width: 600 mm,

(4) material disposition

Drive motor: worm gear motor

Conveyor belt: stainless steel mesh belt

Frame: 50*50*2mm rectangle stainless steel square tube

10.Frying

machine

(1) use: It can fry the potato strips.

(2) features: with oil storage tank, with a coarse filter, with smoke hood, the temperature of 0-220C can be adjusted, frying time variable frequency speed regulation.

(3) technical parameters:

Dimensions: 9000*1000*2100mm

transmission power: 1.5kw, oil pump: 1.5kw*4，

lift power: 1. 1kw ,diesel heating

power:4800000kcal,

Conveyo rbel

twidth:600mm,

(4) material disposition

Drive motor: worm gear motor

Conveyor belt: stainless steel mesh belt

Frame: 50*50*2mm rectangle stainless steel square tube.

11.Vibrating	(1) use: Shake the oil and smooth the French fries. (2) features: smooth running, stainless steel frame structure, easy maintenance, easy cleaning. (3) technical parameters: Dimensions: 2000800950mm power: 0.24kw /380v/ 50Hz, width: 800 mm, (4)material disposition 2mm stainless steel plate
12.cooling machine	(1) use: to remove the fries after frying the surface of excess oil, but also can quickly cool down. (2) features: the device is equipped with a drip pan, blew through oil pan collected and reused, while saving oil can make the chips not greasy taste better, convenient storage. (3) technical parameters: Dimensions: 500010001150mm.Total power: 4.75kw /380v/ 50Hz, transmission: 0.75kw, fan: 0.754 Conveyor belt width: 600 mm, (4) material disposition Drive motor: worm gear motor Conveyor belt: stainless steel mesh belt Frame: 5050*2mm rectangle stainless steel square tube

11.Vibrating

(1) use: Shake the oil and smooth the French fries.

(2) features: smooth running, stainless steel frame structure, easy maintenance, easy cleaning.

(3) technical parameters:

Dimensions: 2000*800*950mm

power: 0.24kw /380v/ 50Hz, width: 800 mm,

(4)material disposition 2mm stainless steel plate

12.cooling

machine

(1) use: to remove the fries after frying the surface of excess oil, but also can quickly cool down.

(2) features: the device is equipped with a drip pan, blew through oil pan collected and reused, while saving oil can make the chips not greasy taste better, convenient storage. (3) technical parameters:

Dimensions: 5000*1000*1150mm.Total power: 4.75kw /380v/ 50Hz, transmission: 0.75kw,

fan: 0.75*4 Conveyor belt width: 600 mm, (4) material disposition

Drive motor: worm gear motor

Conveyor belt: stainless steel mesh belt

Frame: 50*50*2mm rectangle stainless steel square tube
