Block shrimp BQF quick freezing machinery/blast freezer from first cold chain

FOB Price

US $50000.01 - 2 set

US $100000.03 - 3 set

group name: Blast Freezer

Min Order: 1 set

brand name: First cold chain + freeze food machine

model: FPF

Nearest port for product export: Tianjin Port, Shanghai Port, Ningbo Port, Qingdao Port

Delivery clauses under the trade mode: FOB, CFR, CIF, EXW, CIP, DDP, DAF

Acceptable payment methods: T/T, L/C

update time: Thu, 21 Nov 2024 18:15:40 GMT

contact supplier

Paramtents

Refrigerant Freon
Structure Assembled
Suitable for Factory
Refrigeration System Brand Compressor Unit
Size Customized
Use Nature Production
Usage Vegetable & Fruit
Freezer Body Material 304 Stainless Steel
Specification CE ISO9001
Transport Package Seaworthy Plywood Case

Packging & Delivery

Min Order1 set

Briefing

Plate freezer is suitable quick frozen for seafood ,such as : block fish ,shrimp ,transfer convenicent.

Detailed

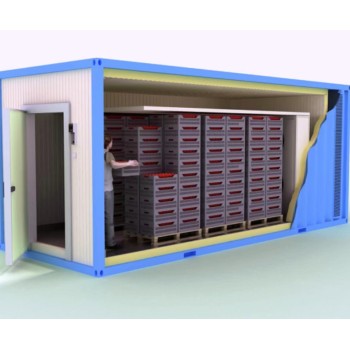

Blast freezer Products Description

Blast freezer has Quick freezing speed, high efficiency, low power consumption, good sanitary conditions, small occupied area, the advantages of operating at room temperature

Blast freezer Suitable for fishing, seafood products, food, business, trade and other frozen processing industry. Processing a variety of fish, shrimp, shellfish and other aquatic products and meat food in small package.

blast freezer


Product		Frozen seafood
Capacity		750-1000kg/h
In/Out Temp.		+4℃ to -8℃
Freezer Temp.		-38℃
In/Out Time		15-75min
Refrigerant		R404A/R507
Consumption		120kw
Freezing Container Thickness		150mm
Product Height		≤100mm
Plate distance each trier		150mm
In total tries		12
Water Input Pressure		≥3 kg/cm2
Freezer Power		11KW
*Freezer Size（LWH）*		4600×3140×3730mm
Freezer Body Material	Duplex stainless steel polyurethane insulation board density or 40 kg/m3, the thickness of 150 mm, 304 stainless steel outer plate thickness more than 0.8 mm
Main Electric Brand	Schneider(France)
Plate material	Aluminium plate
Refrigeration type	Evaporator + plate +fans
Internal Structure	All made of 304 Stainless Steel Material, Argon arc welding
Evaporator	Effective from large aluminum finned tube set, stainless steel panel stent
Fan	Aluminum alloy stainless steel duct fan low noise and waterproof electric power consumption
