high cost effective IQF tunnel freezer for fish in China first cold chain

FOB Price

US $150000.01 - 2 set

US $50000.03 - 5 set

group name: FSW series Tunnel freezer

Min Order: 1 set

brand name: First cold chain + freeze food machine

model: FSW

Nearest port for product export: Tianjin Port, Shanghai Port, Ningbo Port, Qingdao Port

Delivery clauses under the trade mode: FOB, CFR, CIF, EXW, CIP, DDP, DAF

Acceptable payment methods: T/T, L/C

update time: Thu, 21 Nov 2024 18:16:11 GMT

contact supplier

Paramtents

Refrigerant Freon
Structure Assembled
Suitable for Factory
Refrigeration System Brand Compressor Unit
Size Customized
Use Nature Production
Usage Food
Freezer Body Material 304 Stainless Steel
Specification CE ISO9001
Transport Package Seaworthy Plywood Case

Packging & Delivery

Min Order1 set

Briefing

First cold chain manufacture Tunnel Quick Freezer for frozen food .
we can according to client request customize.

Detailed

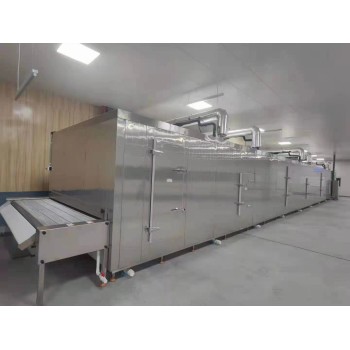

IQF tunnel freezer for fish Product Description

1.The IQF tunnel freezers is widely used in quick-freezing strip, cubic or grain food, such as ice cream, shrimp meat, shrimp, sliced fish, meat dumpling, divided meat and chicken

2.Stainless steel mesh belt transmission

3.Short freezing time, adopted the good effect cross ventilation, with the frozen time 10 to 50 mins.

4.Matched with double speed electric motor, widen the use bound as well as saving the energy.

5.Air blower is divided into cross blast from right and left, mixed blast and top blast according to different frozen products which makes perfect freezing, quality and efficiency

IQF Tunnel freezer for fish Parameters:

Item	FSW400(fish Frozen）
Product		fish
Capacity		400kg/h
In/Out Temp.		+15℃ to -18℃
Freezer Temp.		-40℃
In/Out Time		10-50min
Refrigerant		R404A
Consumption		70kw
Freezing Container Thickness		150mm
Product Height		≤100mm
Belt Width		2000mm
Water Input Pressure		≥3 kg/cm2
Freezer Power		8.2 KW
In/out Guard Length		800/800 mm
*Freezer Size（LWH）*		13000×2500×2300mm
Freezer Body Material	Duplex stainless steel polyurethane insulation board density or 40 kg/m3, the thickness of 150 mm, 304 stainless steel outer plate thickness more than 0.8 mm
Main Electric Brand	Schneider(France)
Belt and Speed	Food-grade stainless steel belt; Frequency conversion step less speed regulation
Slide Track Material	Ultrahigh molecular polyethylene material.
Internal Structure	All made of 304 Stainless Steel Material, Argon arc welding
Evaporator	Effective from large aluminum finned tube set, stainless steel panel stent
Fan and Motor	Aluminum alloy stainless steel duct fan low noise and waterproof electric power consumption

Tunnel Freezer structure diagram
