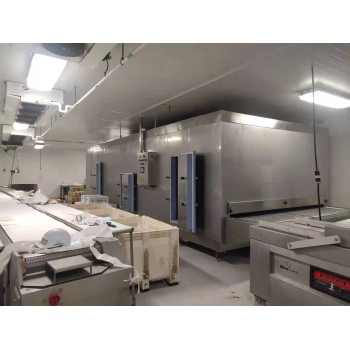

China IQF Tunnel Freezer FST100 type for Food Industry processing quick freeze all kinds of product

FOB Price

US $40000.01 - 2 set

US $30000.03 - 10 set

group name: FSW series Tunnel freezer

Min Order: 1 set

brand name: First cold chain + freeze food machine

model: FSW100

Nearest port for product export: Tianjin Port, Shanghai Port, Ningbo Port, Qingdao Port

Delivery clauses under the trade mode: FOB, CFR, CIF, EXW, CIP, DDP, DAF

Acceptable payment methods: T/T, L/C

update time: Thu, 21 Nov 2024 18:00:54 GMT

contact supplier

Paramtents

Refrigerant Freon
Structure Assembled
Suitable for Factory
Refrigeration System Brand Compressor Unit
Size Customized
Use Nature Production
Usage Food
Freezer Body Material 304 Stainless Steel
Specification CE ISO9001
Transport Package Seaworthy Plywood Case

Packging & Delivery

Min Order1 set

Briefing

China IQF Tunnel freezer suitable for all kinds of frozen food ,freeze effective better than blast freezer .

Detailed

FST100 Tunnel freezer Product Description

1. The tunnel freezer is widely used in quick-freezing strip, cubic or grain food, such as ice cream, shrimp meat, shrimp, sliced fish, meat dumpling, divided meat and chicken,.
2. Short freezing time, adopted the good effect cross ventilation, with the frozen time 10 to 50 mins.
3. Matched with double speed electric motor, widen the use bound as well as saving the energy.
4. Air blower is divided into cross blast from right and left, mixed blast and top blast according to different frozen products which makes perfect freezing, quality and efficiency

China IQF Tunnel Freezer Main Structure:

(1) Stainless steel conveyor belt;
(2) Sandwich PU panels 150 mm thick, laminated by stainless steel sheet both sides; floor panels are equipped;
(3) Doors are equipped with frame heating device;
(4) Aluminum evaporators, different fin pitches;
(5) Axial fans: stainless steel air box, aluminum blades;
(6) Full welded stainless steel water discharging plate is installed on top of floor panels. It will bring defrosting water out of cabinet through stainless steel draining pipes;
(7) The inlet device, outlet device and all structure parts are made of stainless steel;
(8) Control panel is made of stainless steel;
(9) Schneider or Siemens electric components;

the FST100Tunnel freezer parameters as follow:

frozen product :frozen dough

capacity: 100kg/h

cooling capacity: 20kw (±40℃）

refrigerant :R404A/R507A

inter/out temperature: +15/-18℃

inside room temperature:-38±3℃

freeze time :10-50min (adjust)

the spiral freezer body size: 7.5*1.5*2.1m

the materials use full stainless steel structure SUS304

the evaporator use large anti-rust aluminum finned tube group, the rest of the 304 stainless steel

the Electric Control Cabinet use Schneider Electric elements

the panels use double face stainless steel and Self-extinguishing Flame Retardant Polyurethane 150 mm Thickness

the conveyor belt we could use 1000 mm ,according to clients choice.

welcome to know our company products.
