China Flake ice maker machines /Flake ice maker for seafood factory

1. Higher refrigeration efficiency and lower loss of refrigeration capacity

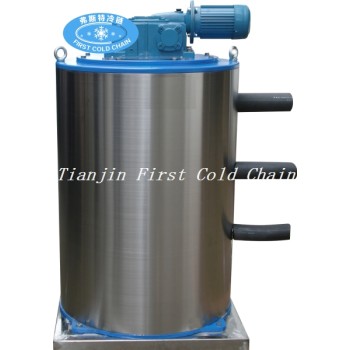

   Automatic flake ice machine adopts the latest vertical evaporator with inner helix ice cutter. In the process of ice making, the water distribution device in ice maker sprays water even on the internal surface of ice maker to frozen in a short time. After ice formed, the helix ice cutter drops down and cut ice. In this method, it makes a full use of evaporator and increase the efficiency of ice making.
2. High quality, dry and non-caked
   The thickness of flake ice which produced by automatic plate ice machine with vertical evaporator is about 1mm to 2mm. The ice shape is irregular flake ice and it has good mobility..
3. Simple structure and small land area
   The series of ice flat has different kinds including fresh water type, seawater type, fixed cold source type, equip cold source by customer, and ice flat machine with cold room. And the daily capacity is ranges from 500kg to 60000kg. Customers can choose suitable machine according to site and different water quality. Compared to traditional ice making machine, it has advantage of small land area and low operation cost (no man for ice harvest)..

Ice maker machine Parameters

Ice output：10000kg/24hrs

Compressor：Germany Bitzer

Ice machine size：2530*1830*1680mm

G.W.：978kg

Standard power supply：3P/380V 50HZ

Total power：31.5 KW

Refrigerating capacity：52 KW

Refrigerant：R404A

Cooling type：Air cooling
