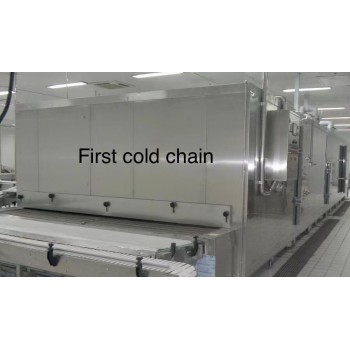

China FST Tunnel cooler for Food Industry processing quick cooling 400kg/h

FOB Price

US $40000.01 - 2 set

US $30000.03 - 10 set

group name: FSW series Tunnel freezer

Min Order: 1 set

brand name: First cold chain + freeze food machine

model: FYW400

Nearest port for product export: Tianjin Port, Shanghai Port, Ningbo Port, Qingdao Port

Delivery clauses under the trade mode: FOB, CFR, CIF, EXW, CIP, DDP, DAF

Acceptable payment methods: T/T, L/C

update time: Thu, 21 Nov 2024 18:04:57 GMT

contact supplier

Paramtents

Refrigerant Freon
Structure Assembled
Suitable for Factory
Refrigeration System Brand Compressor Unit
Size Customized
Use Nature Production
Usage Food
Freezer Body Material 304 Stainless Steel
Specification CE ISO9001
Transport Package Seaworthy Plywood Case

Packging & Delivery

Min Order1 set

Briefing

China first cold chain Tunnel cooler for high temperature product quick cooling ,cooling time shorter ,keep fresh long time .

Detailed

Tunnel cooler Product Description

China Tunnel cooler Main Structure:

(1) Stainless steel conveyor belt;
(2) Sandwich PU panels 100 mm thick, laminated by stainless steel sheet both sides; floor panels are equipped;
(3) Doors are equipped with frame heating device;
(4) Aluminum evaporators, different fin pitches;
(5) Axial fans: stainless steel air box, aluminum blades;
(6) Full welded stainless steel water discharging plate is installed on top of floor panels. It will bring defrosting water out of cabinet through stainless steel draining pipes;
(7) The inlet device, outlet device and all structure parts are made of stainless steel;
(8) Control panel is made of stainless steel;
(9) Schneider or Siemens electric components;

FYW400 TUNNEL COOLER TECHNICAL PARAMETERS

Item	FYW400（ Rice cooling）
Product		Rice
Capacity		400kg/h
In/Out Temp.		+50℃ to 0℃
Freezer Temp.		-15 t o -20℃
In/Out Time		15-75min
Refrigerant		R404A
Consumption		30KW
Freezing Container Thickness		100mm
Product Height		≤100mm
Belt Width		1800mm
Water Input Pressure		≥3 kg/cm2
Freezer Power		5.15 KW
In/out Guard Length		600/600 mm
In total *Freezer Size（LWH）*		11200×2200×2200mm
Freezer Body Material	Duplex stainless steel polyurethane insulation board density or 40 kg/m3, the thickness of 150 mm, 304 stainless steel outer plate thickness more than 0.8 mm
Main Electric Brand	Schneider(France)
Belt and Speed	Food-grade stainless belt; Frequency conversion step less speed regulation
Slide Track Material	Ultrahigh molecular polyethylene material.
Internal Structure	All made of 304 Stainless Steel Material, Argon arc welding
Evaporator	Effective from large aluminum finned tube set, stainless steel panel stent
Fan and Motor	Aluminum alloy stainless steel duct fan low noise and waterproof electric power consumption

tunnel freezer drawing
