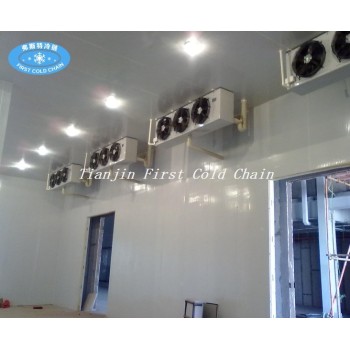

Competitive Price High Quality DJ series Air Cooled Evaporator For Cold Room

FOB Price: US $80000.01 - 10 set

group name: Air Condenser

Min Order: 1 set

brand name: First cold chain + freeze food machine

model: Evaporative Air Cooler

Nearest port for product export: Tianjin Port, Shanghai Port, Ningbo Port, Qingdao Port

Delivery clauses under the trade mode: FOB, CFR, CIF, EXW, CIP, DDP, DAF

Acceptable payment methods: T/T, L/C

update time: Thu, 21 Nov 2024 19:00:41 GMT

contact supplier

Paramtents

Temperature -35~+15
Power source Electric
Suitable for Cold room
Operating Voltage 220v/380v
Size Customized
Coil tube Copper
Mounting Ceiling Mount
Model Number DJ DL DD
Specification CE ISO9001
Transport Package Seaworthy Plywood Case

Packging & Delivery

Min Order1 set

Briefing

Cold room air cooler is common refrigeration parts, mainly used in refrigerator, freezer, air conditioner

Detailed

Air condenser Product Description

Has medium and high, division the low temperature, the product specification model is complete.
1.Reasonable structure, high heat transfer efficiency, even rime, economical electricity, low run cost
2.The air-foil fan, the amount of wind is big, the firing distance is far, the power consumption is small, the noise is low, service lifelong
3. Heat transfer copper pipe thickness may reach 0.6MM, after rising the tube, not only the copper pipe and the wing piece fitting is close moreover seals the reliability to enhance
4. To select the insulation strong stainless steel tubular electric heating tube greatly, the distribution is reasonable, melts the frost time to be short, the effect is good.
5.The shell use spurt model the craft, has the intense inoxidizability, the outward appearance elegant appearance
6.Suitable for cold storage and fresh-keeping
Evaporator series :
DJ type - Low temperature. Suitable for -18- -31 ℃ cold room, keeping for such as fresh meat, fish and fast frozen
DD type - Medium temperature. Suitable for -2 ~ -18 ℃ cold room, keeping for such as meat, aqutic prodcut.
DL type - High temperature. Suitable for 12 ~ -2 ℃ cold room, keeping for such as vegetable, fruit, eggs.
DJ Air cooler ( Fin space 9mm, temperature -18~ - 31 ℃)Technical Parameters of Low-temperature Standard Air-cooler(suspended-ceiling type)

Model	Cooling capacity	Cooling area	Conduit volume	Refrigerant inlet / outlet pipe	Fan parameters	Electric melting frost
Temperature -25℃ Δt=10℃
Temperature -25℃ Δt=10℃	Air volume		Unit	Fan φ	Voltage	Power	Range	Melting frost power		Water pans power
W	㎡	L	mm	M³/H		n	mm	v	w	m	w	w
9.0mm Low-temperature fin space9.0mm
DJ-1.2/8	1240	8	1.8	Φ12/Φ14		3126	2	300	380/220	2×75	8	900	900
DJ-1.9/12	1860	12	2.7	Φ12/Φ16		3126	2	300	380/220	2×75	8	1800	900
DJ-2.3/15	2325	15	3.5	Φ12/Φ16		4689	3	300	380/220	3×75	8	2400	1200
DJ-3.1/20	3100	20	5.8	Φ16/Φ25		6800	2	400	380/220	2×180	10	2000	1000
DJ-4.7/30	4650	30	7.6	Φ16/Φ25		6800	2	400	380/220	2×180	10	2400	1200
DJ-6.2/40	6200	40	10.1	Φ19/Φ32		12000	2	500	380	2×550	15	4200	1400
DJ-8.5/55	8525	55	13.5	Φ19/Φ32		12000	2	500	380	2×550	15	7000	1400
DJ-11/70	10850	70	17.3	Φ19/Φ38		18000	3	500	380	3×550	15	8000	1600
DJ-13/85	13175	85	19.6	Φ19/Φ38		18000	3	500	380	3×550	15	8500	1700
DJ-16/100	15500	100	22.7	Φ25/Φ42		24000	4	500	380	4×550	15	10000	2000
DJ-18/115	17825	115	25.8	Φ25/Φ42		24000	4	500	380	4×550	15	11000	2200
DJ-22/140	21700	140	32.2	Φ25/Φ50		24000	4	500	380	4×550	15	11000	2200
DJ-26/170	26350	170	41.9	Φ25/Φ50		32000	4	550	380	4×550	15	17600	2200
DJ-33/210	32550	210	51.6	Φ25/Φ50		36000	4	600	380	4×750	17	17600	2200
DJ-39/250	38750	250	62.2	Φ25/Φ54		36000	3	700	380	3×1500	17	20000	2000
DJ-47/300	46500	300	72.8	Φ28/Φ54		36000	3	700	380	3×1500	17	22000	2200
