Fluidized quick freezer machine / IQF Freezer 1000kg/h for freeze Fruit and vegetable

FOB Price

US $100000.001 - 2 set

US $50000.003 - 3 set

Nearest port for product export: Tianjin Port, Shanghai Port, Ningbo Port, Qingdao Port

contact supplier

Paramtents

Packging & Delivery

Briefing

Fluidization freezer products by vibration and air pressure which make products float on the stainless steel belt

Detailed

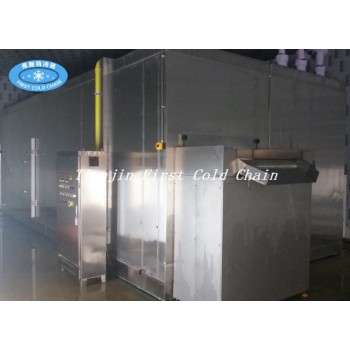

Fluidized IQF Freezer Product Description

The IQF Freezer machine for quick freezing all kinds of fruit & vegetable and some of the seafood

work principle:

Using high efficiency centrifugal fan ,make the product freeze fast in vibration floating state.

Achieve the product of the individually quick frozen.ensure the product freezing effect.

The whole freezing process achieve full closure fast freezing ,avoid product from turning out the belt.

the 1000kg/h Fluidized iqf freezer parameters as follow:

frozen product :blueberries

capacity: 1000kg/h

cooling capacity: 170kw (±40℃）

refrigerant :R404A/R507A/R717

inter/out temperature: +15/-18℃

inside room temperature:-38±3℃

freeze time :6-30min (adjust)

the spiral freezer body size: 11*4.2*3m

the materials use full stainless steel structure SUS304

the evaporator use high effective large anti-rust aluminum finned tube group, the rest of the 304 stainless steel.

the Electric Control Cabinet use Schneider Electric

the panels use double face stainless steel and Self-extinguishing Flame Retardant Polyurethane 150mm Thickness

the conveyor belt we could use 1200mm etc ,according to clients choice.Food-grade stainless steel belt;

Frequency conversion stepless speed regulation

Fan and Motor use high wind volume stainless steel centrifugal fan low noise fan and waterproof motor

Refrigeration system we adopt bitzer brand screw compressor unit.ensure the freeze effective

welcome to know our company products. #IQFfreezer #IQFtunnelfreezer #IQFspiralfreezer #Blastfreezer
