China High Quality Moving blast freezer / container freezer for food factory
- FOB Price
US $36000.01 - 2 set
US $35000.03 - 5 set
- group name
- Blast Freezer
- Min Order
- 1 set
- brand name
- First cold chain + freeze food machine
- model
- FBF
- Nearest port for product export
- Tianjin Port, Shanghai Port, Ningbo Port, Qingdao Port
- Delivery clauses under the trade mode
- FOB, CFR, CIF, EXW, CIP, DDP, DAF
- Acceptable payment methods
- T/T, L/C
- update time
- Thu, 21 Nov 2024 17:31:32 GMT
Paramtents
Refrigerant R22 (R404A )Freon for Selection
Structure Assembled
Suitable for Factory
Refrigerating System Brand Compressor Unit
Usage Fresh Keeping, Frozen, Deep Freezer
Refrigerating System Brand Compressor Unit
Transport Package Sea Worthy Packing
After-Sales Service Assisting Service
Packging & Delivery
-
Min Order1 set
Briefing
Can use it direclty after it arrived. It can storage food, fruit, fish, ice etc. Convenient to use and operate.
Detailed

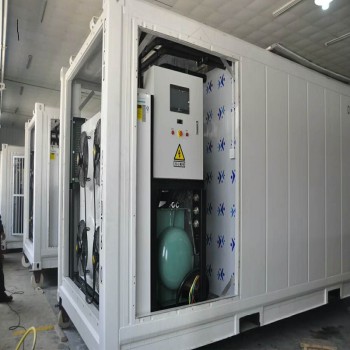

Moving blast freezer Product Description
The moving blast freezer container for foreign sale is designed with the size of the latest international standard container whose size is easy for exporting transportation, and the appearance looks beautiful. with the high density heat insulating it can keep the internal temperature, and at the same time it can increase the internal storage space because of its slight and thin maternal, so the worker can work in the freezer expediently. The moving blast freezer container has 2 kinds. One kind is 20ft and the other kind is 40ft,and it is assembled with 30hp 2-stage compressor unit(30hp low temperature screw compressor unit ) and 75hp low low temperature screw compressor unit ,you can choose the type of moving blast freezer container according to the freezer capacity and origin restriction and other factors
Blast freezer Parameters
Model | Outside size | Frozen storage size(mm) | Refrigerant | Temperature | Freeze capacity | ||||
|---|---|---|---|---|---|---|---|---|---|
L | W | H | L1 | W2 | H3 | ||||
20ft | 6058 | 2438 | 2591 | 3890 | 2280 | 2220 | R404A | -40℃ | 2~2.5T/8H |
40ft | 12192 | 2438 | 2896 | 8520 | 2280 | 2510 | R404A | -40℃ | 4~4.5T/8H |
Refrigeration compressor unit parameters
Model | Refrigerating capacity | Power (kw) | Size of the unit(mm) | Refrigerant | Cooling type | Fluorine filling volume | ||
|---|---|---|---|---|---|---|---|---|
L | W | H | ||||||
S6F-30.2 | 21.1kw | 16.84kw | 2200 | 1300 | 1900 | R404A | Air cooling | 400kg |
HSN5363-30 | 23.2kw | 25.4kw | 2200 | 1400 | 1900 | R404A | Air cooling | 400kg |
HSN7471-75 | 46.9kw | 40.8kw | 2650 | 1250 | 2100 | R404A | Air cooling | 800kg |
