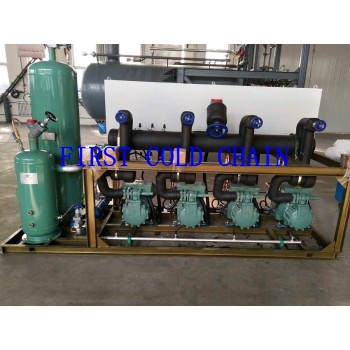

Frozen Chicken with Cold Room compressor Condensing Unit from China first cold chain
- FOB Price
US $10000.01 - 2 set
US $5000.03 - 5 set
- group name
- Refrigeration Compressor for Cold Room/Quick Freezer
- Min Order
- 1 set
- brand name
- First cold chain + freeze food machine
- model
- Refrigeration compressor
- Nearest port for product export
- Tianjin Port, Shanghai Port, Ningbo Port, Qingdao Port
- Delivery clauses under the trade mode
- FOB, CFR, CIF, EXW, CIP, DDP, DAF
- Acceptable payment methods
- T/T, L/C
- update time
- Thu, 21 Nov 2024 18:39:43 GMT
Paramtents
Cooling System Water Cooling or Air Cooling
Condition New
Cylinder Position Horizontal
Refrigeration Valves Brands Valves
Transport Package Sea Worthy Packing
After-Sales Service Assisting Service
Certification ISO, CE, CCC
Specification CE ISO9001
Energy Efficiency Energy Efficiency and Environmental Protection
Packging & Delivery
-
Min Order1 set
Briefing
Compressor unit Using external rotor air cooler (except FNV type), Low noise, high efficiency,
and good appearance.
and good appearance.
Detailed
Cold Room compressor Product Description
Both semi-hermetic and hermetic compressors condensing units.
All the compressor are Original
1. Using Copper pipe aluminum condenser or high efficient shell condenser,
Quick heat exchange with long time.
2. Using external rotor air cooler (except FNV type), Low noise, high efficiency,
and good appearance.
3. Using domestic and foreign parts with good quality, complete specifications with
good characteristic.
4. Matching with water-proof Junction Box, all the controlling parts are juncted in it,
it is convenient.
5. Complete models with wide temperatures using, and can be used widely for storage,
cooling, ice-making, freezing, etc.
FEATURES:
1. Compressor unit is very reliable. It can work continuously for a very long time;
2. Beautiful and durable appearance design, anti-collision and rain proof;
3. Small space occupying, convenient for packing and transportation;
4. Easy installation; floor stand or wall hung;
5. Efficient and powerful fan which has big blast volume and low power consumption;
6. Efficient heat transfer and ultra quiet design, easy operation.
All the compressor are Original
1. Using Copper pipe aluminum condenser or high efficient shell condenser,
Quick heat exchange with long time.
2. Using external rotor air cooler (except FNV type), Low noise, high efficiency,
and good appearance.
3. Using domestic and foreign parts with good quality, complete specifications with
good characteristic.
4. Matching with water-proof Junction Box, all the controlling parts are juncted in it,
it is convenient.
5. Complete models with wide temperatures using, and can be used widely for storage,
cooling, ice-making, freezing, etc.
FEATURES:
1. Compressor unit is very reliable. It can work continuously for a very long time;
2. Beautiful and durable appearance design, anti-collision and rain proof;
3. Small space occupying, convenient for packing and transportation;
4. Easy installation; floor stand or wall hung;
5. Efficient and powerful fan which has big blast volume and low power consumption;
6. Efficient heat transfer and ultra quiet design, easy operation.
Compressor unit Parameters
Three parallel air cooled low temperature compressor unit
Unit model (low temperature) (Air cooling) | BBF3- | |||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
27BY | 42BY | 54BY | 69BY | 84BY | 102BY | 132BY | ||||||||
Applicable temperature（℃） | -15℃ ~~ -30℃ | |||||||||||||
Refrigerant | R404A/R507A | |||||||||||||
Power Supply | 380v/50HZ | |||||||||||||
Compressor | Shape | Semi enclosed piston type | ||||||||||||
Type | 4TES-9Y | 4NES-14Y | 4HE-18Y | 4GE-23Y | 6HE-28Y | 6GE-34Y | 6FE-44Y | |||||||
Qty | 3 | 3 | 3 | 3 | 3 | 3 | 3 | |||||||
Refrigerating capacity And power | -25℃ | Capacity(w) | 25860 | 35100 | 50070 | 59010 | 73800 | 89100 | 105900 | |||||
Power(kw) | 19.05 | 25.74 | 36.0 | 42.81 | 53.07 | 65.4 | 78.6 | |||||||
-30℃ | Capacity(w) | 18930 | 25650 | 37350 | 44460 | 55020 | 67800 | 79800 | ||||||
Power(kw) | 16.14 | 21.72 | 31.05 | 36.99 | 45.6 | 56.85 | 68.1 | |||||||
-40℃ | Capacity(w) | 9000 | 12180 | 18660 | 23070 | 27510 | 35730 | 40830 | ||||||
Power(kw) | 7.22 | 9.44 | 14.46 | 17.42 | 20.8 | 27.12 | 32.14 | |||||||
Unit size (L*W*H) | 2750*1120*1700 | 2850*1120*1700 | 3150*1120*1850 | |||||||||||
Condensing temperature 45℃
