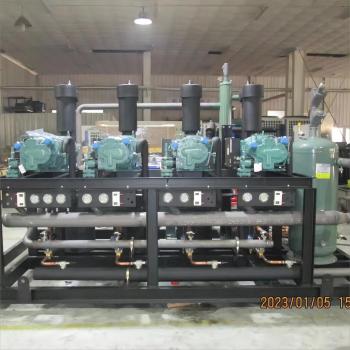

First cold chain Compressor unit Refrigeration for IQF freezer the capacity from 1000 to 2000kg/h
- FOB Price
US $10000.01 - 2 set
US $5000.03 - 5 set
- group name
- Refrigeration Compressor for Cold Room/Quick Freezer
- Min Order
- 1 set
- brand name
- First cold chain + freeze food machine
- model
- compressor unit
- Nearest port for product export
- Tianjin Port, Shanghai Port, Ningbo Port, Qingdao Port
- Delivery clauses under the trade mode
- FOB, CFR, CIF, EXW, CIP, DDP, DAF
- Acceptable payment methods
- T/T, L/C
- update time
- Thu, 21 Nov 2024 19:12:45 GMT
Paramtents
Cooling System Water Cooling or Air Cooling
Condition New
Cylinder Position Horizontal
Refrigeration Valves Brands Valves
Transport Package Sea Worthy Packing
After-Sales Service Assisting Service
Certification ISO, CE, CCC
Specification CE ISO9001
Energy Efficiency Energy Efficiency and Environmental Protection
Packging & Delivery
-
Min Order1 set
Briefing
Refrigeration Compressor Condensing Unit use for Freezer Cold Room/storage/ fridge
Detailed
Compressor unit Refrigeration for IQF freezer Product Description
1.Design basis
（1).《design code 》GB50072-2010；
（2).《heating ventilation and air-conditioning planning design code 》GB50019-2003；
（3).《refrigeration design handbook》；
（4).User requirement。
2.Design condition
（1）、Refrigerant：R404A；
（2）、Evaporating condensing temperature：-40/+40℃
Equipment selection
operation condition | Compressor unit type | refrigerating capacity | electric power |
|---|---|---|---|
-40/+40℃ | HSN8571-125*3 | 297.9Kw | 303.6Kw |
Choose Biter screw compressor 3set：HSN8571-125Y
2.Evaporation condenser
Type：ZFLA-1800 evaporation condenser.
3.Electrical control system ：main electrical element are Schneider.
1.Compressor unit technical parameters
Compressor unit name | unit | Screw compressor unit | |
|---|---|---|---|
Compressor unit type | FSTHSN8571-125*3 | ||
Compressor | 3set | Bitzer HSN8571-1125Y | |
Compressor | Theory Displacement | m3/h | 495m3/h/set 60HZ |
Energy Adjustable range | 100%-75%-50% | ||
refrigerant | type | R507A | |
Design conditions | ℃ | -40℃/40℃ | |
refrigeration capacity | KW | 297.9KW | |
Voltage and power | 3N/60Hz/440V 303.3KW | ||
oil cooler | liquid cooling | ||
Overall dimensions(L*W*H) | mm | 4250×2020×2300 | |
Unit weight | kg | ～4500 | |
