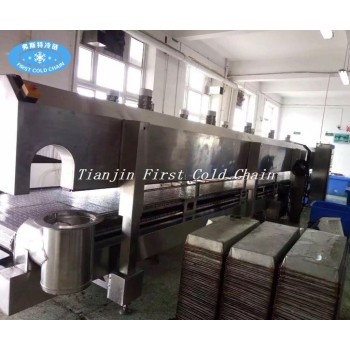

Liquid Nitrogen iqf freezer machine 300kg/h
Liquid nitrogen temperatures can reach minus -190 ℃
When it is in contact with food,Gasification will be able to take heat away more quickly.
- Maximum speed of decreasing temperature ―― ≥ 50 ℃ /min;
- Maximum speed of increasing temperature ―― ≥ 8 ℃ /min (used for defrost or sterilization at high temperature);
- Accuracy of temperature control ―― ±3 ℃;
- Uniformity of temperature ―― ±1 ℃;
- Advantage:
2. Improve productivity, improve texture, color, flavor of frozen product.
3. The nitrogen freezer is Environmental, no pollution, no noise.
4. Easy to operate and easy to repair, don't need special technician.
5. All stainless steel SUS304 structure parts
6. Higher quality of the frozen product compared with slower methods
NO. | Project | Parameters |
1 | Mesh belt size： | 6000 mm（L）×800 mm(W) Capacity：300 KG/H |
2 | Outline dimension： | 6000 mm（L）×1700 mm(W)×2050 mm(H) |
3 | working temperature： | -180℃～15℃ |
4 | control accuracy： | ±2℃ |
5 | Tunnel cycle time： | 8-40 Min Adjustable |
6 | Cooling rate： | 10℃/Min |
7 | Supply power： | 380V/50HZ |
8 | Power： | 8KW、12KW |
9 | Refrigerant： | 5-10BAR liquid nitrogen |
2. Main structure and configuration
The equipment is a continuous production line，Safe and durable，Easy operation. Quick freezing machine mainly by the body, insulation system, transmission system, refrigeration system, control system
Body and thermal insulation system | Body design:The thickness of the inner cavity and the outer cavity is 2MM sus304 food grade stainless steel plate shearing and bending.The position of the force with the reinforcement and reinforcement of Teflon，To ensure long-term bearing does not deform，Make the craft beautiful. |
Integrated electric cabinet，Save space. | |
Thermal insulation layer：Germany imported BASF polyester raw materials.Multi layer thermal insulation foam insulation layer, insulation layer thickness: 150mm | |
Equipment maintenance：Adopt integral lifting system，Easy to clean and maintain the conveyor beltThe bottom of the body with drain out，In order to discharge equipment to clean waste residue and water；Design of equipment with long life and low consumption，Simple and rapid replacement of vulnerable parts，Excellent maintainability.Lifting screw material is SUS304. | |
Transfer system | Food transportation： SUS304 food special conveyor belt，With variable frequency adjustable speed motor，Conveying speed can be adjusted according to different products；The device is also provided with a mesh belt tightness adjusting device，To ensure the stable and long life of the food conveyor belt |
Variable frequency motor and speed reducer，Adjustable speed。 | |
Conveyor belt is stainless steel 304 chain plate mesh belt，Corrosion resistance and low temperature resistance，Can be used for a long time. | |
Refrigeration system | Liquid nitrogen flow control solenoid valve ，KEIHIN solenoid valve with manual liquid nitrogen stop valve joint control, equipped with redundant systems, in which a group of faults, but also normal production, to ensure adequate safety |
A series of stainless steel nozzles formed in liquid nitrogen quick freezing zone formed a uniform and stable liquid nitrogen cold flow, and the nozzle has a long life without damage.The conveyor belt is equipped with a spray device，Automatic manual operation，Can open all the work can also open the work independently.The upper and lower spray angle can be adjusted, so that the speed of product production more uniform effect | |
Low temperature long axis motor and aluminum alloy axial fan，In the air cooling mode, it can guarantee the fast convection cooling, at the same time, it can ensure the uniform temperature field and the fan speed can be adjusted.Fan blade angle can be adjusted manually according to different products | |
Liquid nitrogen transfer tube：Low temperature high pressure liquid nitrogen conveying pipe，The outer layer is treated by heat preservation，Not easily damaged，Can effectively reduce the loss of liquid nitrogen | |
The feed end and the discharge end are provided with a tail gas outlet, which is connected with a large flow frequency conversion fan, and the tail gas of the quick freezing line can be drawn out to the designated position for discharging or pre cooling material | |
Control system | The control system has two kinds of automatic and manual refrigeration mode, the user can choose according to the different production needs |
With the running speed of the network, the fan speed can be adjusted by frequency conversion, matching the different temperature to adapt to different frozen categories | |
The use of man-machine interface (touch screen) input, PLC intelligent control, with PID automatic adjustment function, can be divided into ten steps to cool and heat preservation, automatic alarm after the end of all procedures | |
PT100 platinum resistance temperature measurement，Measuring range：200℃～-200℃。 | |
SIEMENS 10 inch color screen，Manual and automatic operation，Input is intuitive and simple.Can store a variety of refrigeration technology, one button operation. | |
Contactor, button: all imported Schneider components, reliable and durable | |
Belt drive system is equipped with independent frequency conversion motor | |
At the discharge end of the equipment, the receiving end of the electric cabinet is equipped with emergency stop safety switch to ensure the safety of different stations at any time |
3. Equipment main component configuration list
NO. | Name | Parameters | Brand |
1 | Cryogenic Globe Valve | DN25 | CHINA |
2 | Temperature sensor | PT100 | CHINA |
3 | PLC | 1BD23 | SIEMENS |
4 | PLC Modular | 7PD22 | SIEMENS |
5 | Touch screen | 10inch | MCGS |
6 | Sealing strip | USA | |
7 | Thermal insulation layer material | BASF Polymeric material | USA |
8 | Axial flow fan | 1.1KW | CHINA |
9 | Conveyor belt | SUS304 | JAPAN |
10 | Low temperature solenoid valve | 1/2inch | JAPAN |
11 | Relay | Schneider | FRANCE |
12 | Frequency converter | VFD022M43B | CHINA |
13 | Low temperature bearing | SUS304 | Customized |
14 | Box material | SUS304 Thickness:2mm | CHINA |
15 | Transfer motor | 1.5KW | ABB |
16 | Screw lifting system | RNF040 | CHINA |
17 | Ultra low temperature vacuum hose | Length 2 m | CHINA |
