China Contact Plate Freezer / Quick Freezer for Fish Fillet Plate Freezer
- FOB Price
US $80000.01 - 2 set
US $70000.03 - 3 set
- group name
- Blast Freezer
- Min Order
- 1 set
- brand name
- First cold chain + freeze food machine
- model
- FPF
- Nearest port for product export
- Tianjin Port, Shanghai Port, Ningbo Port, Qingdao Port
- Delivery clauses under the trade mode
- FOB, CFR, CIF, EXW, CIP, DDP, DAF
- Acceptable payment methods
- T/T, L/C
- update time
- Thu, 21 Nov 2024 17:52:30 GMT
Paramtents
Refrigerant Freon
Structure Assembled
Suitable for Factory
Refrigeration System Brand Compressor Unit
Size Customized
Use Nature Production
Usage Vegetable & Fruit
Freezer Body Material 304 Stainless Steel
Specification CE ISO9001
Transport Package Seaworthy Plywood Case
Packging & Delivery
-
Min Order1 set
Briefing
Plate quick freezing is widely in quick frozen for block seafood shrimp fish etc
Detailed
Plate Freezer Product Description
STRUCTURE CHARACTERISTIC

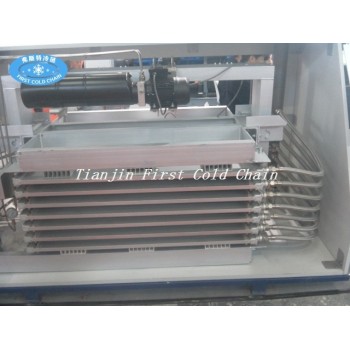

The unit consists of evaporative station,insulation cabinet,hydraulic-driving part and controlling panel.
Compacted structure,easy operation.Support inside and hardware are all stainless steel(SUS304).Evaporation station are all made of aluminum alloy 6063.Pad at the bottom ant top are all HDPE.All the materials inside can keep clean inside to accord with foodstuff standard in Europe.
1.The equipment is equipped with a complete set of refrigeration units, which is suitable for small batch production.
2.After open, convenient frozen access, easy to install, with mobile
3.The pressure balance between aluminum plates and the size of the frozen product
4.Selection of high efficiency compressor, high quality heat preservation storehouse body and food grade extrusion storehouse board
APPLICATION SCOPE
The units are suit for cold storage,processing of aquatic products and poultry & meat.
WORKING CONDITIONS
Refrigerant:Rww,R404A,R507A,R717 or similar
In-take temp.:+15;
Out-take temp.:≤-18
Ambient temp.:≤-50;
Condensing temp.:35-40;
Evap.temp.:-35;
Freezing Time
fish(tray size:600 x 400 x 80mm;15kg/tray)6-7hr/shift
shrimp(tray size:300 x 200 x 60mm;2kg/tray)4-5hr/shift
codfish(frame size:520 x 310 x 60mm;2kg/tray)2.5-3hr/shift
Plate freezer Parameters list
The unit consists of evaporative station,insulation cabinet,hydraulic-driving part and controlling panel.
Compacted structure,easy operation.Support inside and hardware are all stainless steel(SUS304).Evaporation station are all made of aluminum alloy 6063.Pad at the bottom ant top are all HDPE.All the materials inside can keep clean inside to accord with foodstuff standard in Europe.
1.The equipment is equipped with a complete set of refrigeration units, which is suitable for small batch production.
2.After open, convenient frozen access, easy to install, with mobile
3.The pressure balance between aluminum plates and the size of the frozen product
4.Selection of high efficiency compressor, high quality heat preservation storehouse body and food grade extrusion storehouse board
APPLICATION SCOPE
The units are suit for cold storage,processing of aquatic products and poultry & meat.
WORKING CONDITIONS
Refrigerant:Rww,R404A,R507A,R717 or similar
In-take temp.:+15;
Out-take temp.:≤-18
Ambient temp.:≤-50;
Condensing temp.:35-40;
Evap.temp.:-35;
Freezing Time
fish(tray size:600 x 400 x 80mm;15kg/tray)6-7hr/shift
shrimp(tray size:300 x 200 x 60mm;2kg/tray)4-5hr/shift
codfish(frame size:520 x 310 x 60mm;2kg/tray)2.5-3hr/shift
Plate freezer Parameters list
Model Item | Capacity (kg) | Plate Qty | Distance between(mm) | Dimension of plate(mm) | Refrigerating Capacity(kw) | Install power Compressor unit | Overall dimension (L*W*H)(mm) | Refrigerant |
|---|---|---|---|---|---|---|---|---|
FST-500 | 500 | 10 | 55~100 | 1200*1260 | 23 | S6G25.2Y compressor | 3500*1900*2000 | R404a |
FST-1000 | 1000 | 10 | 55~105 | 2000*1260 | 45 | 2*S6G25.2Y compressor | 4300*1900*2900 | R404a |
FST-1300 | 1300 | 14 | 55~100 | 2000*1260 | 60 | HSN7461-70Y compressor | 4300*1900*3200 | R404a |
FST-1540 | 1540 | 11 | 55~105 | 2000*1670 | 65 | HSN7471-75Y compressor | 3300*2100*2900 | R404a |
FST-2002 | 2000 | 14 | 55~100 | 2000*1670 | 76 | 2*HSN6451-50compressor | 3300*2100*3200 | R404a |
