China selling well all over world Individual quick frozen/ IQF freezer for Strawberries

FOB Price

US $60000.01 - 2 set

US $200000.03 - 3 set

group name: FSLD Series IQF freezer

Min Order: 1 set

brand name: First cold chain + freeze food machine

model: FSLD

Nearest port for product export: Tianjin Port, Shanghai Port, Ningbo Port, Qingdao Port

Delivery clauses under the trade mode: FOB, CFR, CIF, EXW, CIP, DDP, DAF

Acceptable payment methods: T/T, L/C

update time: Thu, 21 Nov 2024 17:31:32 GMT

contact supplier

Paramtents

Refrigerant Freon
Structure Assembled
Suitable for Factory
Refrigeration System Brand Compressor Unit
Size Customized
Use Nature Production
Usage Vegetable & Fruit
Freezer Body Material 304 Stainless Steel
Specification CE ISO9001
Transport Package Seaworthy Plywood Case

Packging & Delivery

Min Order1 set

Briefing

It is suitable for freezing vegetables,fruits,flake and granular products,etc.freezing capacity is between 500kg/h and 5000kg/h

Detailed

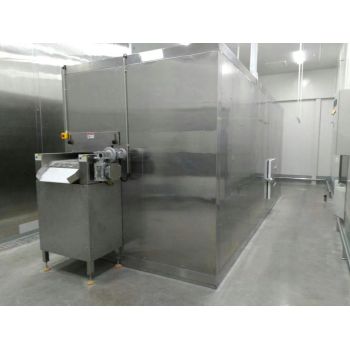

IQF freezer / fluidized bed freezer Main Features

1) Suitable for fluidized IQF frozen processing for green peas or fruits and vegetables slices, dices etc.
2) Frequency converters for belt conveying and also fan blowers which assure flexibility during the production even with the most difficult products.
3) Extraordinary freezing efficiency is guaranteed by the extremely efficient evaporator, optimized design and quality finishing.
4) Easy access to all freezer parts, easy handling of maintenance and cleaning operations.
5) Stainless steel wire mesh belt, which is the most reliable solution by now, proven performance by users, and universal solution for easier replacement and maintenance all over the world.
6) Superior fluidized IQF function by extra belt hitting system together with the adjustable high pressure centrifugal blower to generate vertical air flows which keep the materials in a fluidized condition during the freezing process.
7) With our high quality stainless steel belt and on position cleaning device for the belt, we can bring the highest sanitation level and easy work for cleaning of our freezer.

the 2000kg/h Fluidized iqf freezer parameters as follow:
frozen product :Strawberries
capacity: 2000kg/h
cooling capacity: 340kw (±40℃）
refrigerant :R404A/R507A/R717
inter/out temperature: +15/-18℃
inside room temperature:-38±3℃
freeze time :6-30min (adjust)
the spiral freezer body size: 164.23m
the materials use full stainless steel structure SUS304
the evaporator use high effective large anti-rust aluminum finned tube group, the rest of the 304 stainless steel.
the Electric Control Cabinet use Schneider Electric
the panels use double face stainless steel and Self-extinguishing Flame Retardant Polyurethane 150mm Thickness
the conveyor belt we could use 1300mm etc ,according to clients choice.Food-grade stainless steel belt;
Frequency conversion stepless speed regulation
Fan and Motor use high wind volume stainless steel centrifugal fan low noise fan and waterproof motor
Refrigeration system we adopt bitzer brand screw compressor unit.ensure the freeze effective
welcome to know our company products. #IQFfreezer #IQFtunnelfreezer #IQFspiralfreezer #Blastfreezer

Fluidized bed quick freezer structure diagram
