Fluidized Quick Freezer for Strawberries/Vegetable IQF Quick Freezing Equipment in China
- FOB Price
US $150000.01 - 2 set
US $50000.03 - 5 set
- group name
- FSLD Series IQF freezer
- Min Order
- 1 set
- brand name
- First cold chain + freeze food machine
- model
- FSLD
- Nearest port for product export
- Tianjin Port, Shanghai Port, Ningbo Port, Qingdao Port
- Delivery clauses under the trade mode
- FOB, CFR, CIF, EXW, CIP, DDP, DAF
- Acceptable payment methods
- T/T, L/C
- update time
- Thu, 21 Nov 2024 17:59:31 GMT
Paramtents
Refrigerant Freon
Structure Assembled
Suitable for Factory
Refrigeration System Brand Compressor Unit
Size Customized
Use Nature Production
Usage Vegetable & Fruit
Freezer Body Material 304 Stainless Steel
Specification CE ISO9001
Transport Package Seaworthy Plywood Case
Packging & Delivery
-
Min Order1 set
Briefing
Fluidized IQF freezer is the most suitable quick frozen equipment for vegetables,fruits such as sweet corn, caultiflower pieces
Detailed

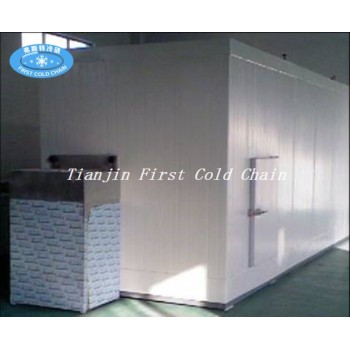

Fluidized Quick Freezer Product Description
The FSLD fluidized IQF freezer adopts advanced technology, combines the latest design from Sweden and Canada, which increased the efficiency and quality for real individual quick freezing.
The Fluidized IQF freezer is the most suitable quick frozen equipment for vegetables, fruits such as peas, sweet corn, carrot slices or dices, caultiflower pieces, and etc. also it is very good for shrimps, seafood. Generally it is very suitable for any food products with smaller sizes with big capacity need.
Main features of FSLD Fluidized IQF freezer:
1) Designed according to HACCP requirements, which meet the international food hygienic standard.
2) Strong stainless steel frame and modular insulation board for freezer body.
3) High efficiency blowers with big air volume and high air pressure, well special design for fan blades for lighter weight to save energy.
4) Two section conveying belt to ensure the best fluidized quick freezing result.
5) Self made high quality aluminum evaporators with aluminum fins. High efficient and long working time.
6) High grade stainless steel spring wire mesh belt.
7) On position mesh belt cleaning device on the input area for easy cleaning during operation.
8) All detailed design and finishing to ensure the best quality of your final products.
The Fluidized IQF freezer is the most suitable quick frozen equipment for vegetables, fruits such as peas, sweet corn, carrot slices or dices, caultiflower pieces, and etc. also it is very good for shrimps, seafood. Generally it is very suitable for any food products with smaller sizes with big capacity need.
Main features of FSLD Fluidized IQF freezer:
1) Designed according to HACCP requirements, which meet the international food hygienic standard.
2) Strong stainless steel frame and modular insulation board for freezer body.
3) High efficiency blowers with big air volume and high air pressure, well special design for fan blades for lighter weight to save energy.
4) Two section conveying belt to ensure the best fluidized quick freezing result.
5) Self made high quality aluminum evaporators with aluminum fins. High efficient and long working time.
6) High grade stainless steel spring wire mesh belt.
7) On position mesh belt cleaning device on the input area for easy cleaning during operation.
8) All detailed design and finishing to ensure the best quality of your final products.
Parameters
Mode | FSLD500 | FSLD1000 | FSLD1500 | FSLD2000 | FSLD3000 |
|---|---|---|---|---|---|
Throughput±10%(kg/h) | 500 | 1000 | 1500 | 2000 | 3000 |
Refrigeration capacity (kw/h) | 90 | 170 | 255 | 320 | 480 |
Freezer room size | 5.5×4.0×2.9 | 8.5*4.0*2.9 | 12.5×4.2×2.9 | 15×4.2×2.9 | 19.5×4.2×2.9 |
Exterior size | 7.5×4.0×2.9 | 10.5×4.0×2.9 | 14.5×4.2×2.9 | 17×4.2×2.9 | 21.5×4.2×2.9 |
Power(Kw) | 19 | 35.2 | 49.2 | 61.2 | 78 |
In feed temperature | +15℃ | +15℃ | +15℃ | +15℃ | +15℃ |
Out feed temperature | -18℃ | -18℃ | -18℃ | -18℃ | -18℃ |
Inner circulation temperature | -35±2℃ | -35±2℃ | -35±2℃ | -35±2℃ | -35±2℃ |
Frozen time(Min) | 6-30 | 6-30 | 6-30 | 6-30 | 6-30 |
Refrigerant | R717/R404A | R404A/R717 | R404A/R717 | R404A/R717 | R404A/R717 |
Fluidized quick freezer structure diagram
