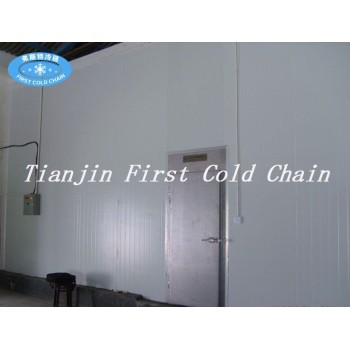

Factory supply High Quality Cold Room / cold storage for Frozen Meat or Fish
- FOB Price
US $10000.001 - 2 set
US $100000.003 - 3 set
- group name
- Cold Room
- Min Order
- 1 set
- brand name
- First cold chain + freeze food machine
- model
- FLK
- Nearest port for product export
- Tianjin Port, Shanghai Port, Ningbo Port, Qingdao Port
- Delivery clauses under the trade mode
- FOB, CFR, CIF, EXW, CIP, DDP, DAF
- Acceptable payment methods
- T/T, L/C
- update time
- Thu, 21 Nov 2024 17:34:31 GMT
Paramtents
Refrigerant R22 (R404A )Freon for Selection
Structure Assembled
Suitable for Factory
Refrigerating System Brand Compressor Unit
Usage Fresh Keeping, Frozen, Deep Freezer
Refrigerating System Brand Compressor Unit
Transport Package Sea Worthy Packing
After-Sales Service Assisting Service
Packging & Delivery
-
Min Order1 set
Briefing
Detailed
Cold room Specification
1. Compressor
2. Danfoss Parts
3. PU insulation sandwich panel board
4. Air cooler
Condenser
Feature of freezer cold rooms ,refrigerated chiller and freezer ,cold room /chiller room, cold storage room, cooler room,Cold storage /cold store/ walk in freezer room / cold room, cold storage room, chiller room, cooling room:
Polyurethane insulation board design for cold room, the main steel structure to facilitate construction. Portable sliding doors, and out of cold storage more convenient, easy to operate.
Water defrosting evaporator defrost faster, save operating costs.
Cold storage door with anti-shock protection, an increase of reliability.
Evaporator type
Air Cooled Type | Ceiling type DL (5-20℃）DD（-5~+5 ℃）DJ（-18~-20℃） |
|---|---|
Aluminum shelving | Customize -18 ℃ or -35℃ |
Evaporator Cooled Type | Evaporator Condenser DJS (-30~-40℃) |
Room size type
Room size | Mini | Small | Middle | Big |
|---|---|---|---|---|
Volume range | 200m³ | 200~1000m³ | 1000~5000m³ | >5000m³ |
Temperature table for reference
Cold storage goods | Temperature range |
|---|---|
Processing room | 10℃ |
Fruit, vegetable, dry food | 0~-5℃ |
Medicine, cake, pastry, chemical material | 0~-5℃ |
Ice storage room | -5~-10℃ |
Fish, meat storage | -18~-25℃ |
Deep freezer. | -25C~-35℃ |
Compressor type and condenser
Compressor type | Bitzer(Germany) | Frascold (Italy) | Copeland (US) | China brand |
|---|---|---|---|---|
Condenser | Air cooled | Aater cooled | Evaporator | |
Panels information
Office Foam panel | 50mm thickness |
|---|---|
Processing room 10℃ | 50mm/ 75mm PU |
-5℃ | 75mm/ 100mm PU |
-18℃ | 100mm/ 150mm PU |
-25C/ -35℃ | 150mm/200mm PU |
Panel steel cover | SS, GI, aluminum etc |
