High quality Cold Storage / China Cold Room for seafood from China
- FOB Price
US $10000.001 - 2 set
US $100000.003 - 10 set
- group name
- Cold Room
- Min Order
- 1 set
- brand name
- First cold chain + freeze food machine
- model
- FLK
- Nearest port for product export
- Tianjin Port, Shanghai Port, Ningbo Port, Qingdao Port
- Delivery clauses under the trade mode
- FOB, CFR, CIF, EXW, CIP, DDP, DAF
- Acceptable payment methods
- T/T, L/C
- update time
- Sun, 19 May 2024 10:03:26 GMT
Paramtents
Refrigerant R22 (R404A )Freon for Selection
Structure Assembled
Suitable for Factory
Refrigerating System Brand Compressor Unit
Usage Fresh Keeping, Frozen, Deep Freezer
Refrigerating System Brand Compressor Unit
Transport Package Sea Worthy Packing
After-Sales Service Assisting Service
Packging & Delivery
-
Min Order1 set
Briefing
Detailed
China Cold Room introduction

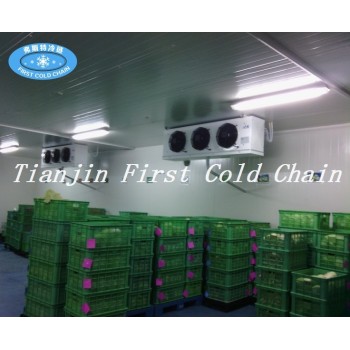

Cold Room Projects
(1) Temperature range: -40ºC~+20ºC are all available.
(2) Size: Customize.
(3) Functions: fresh-keeping, freezing, quick-freezing, fire-proof, explosion-proof, air-conditioning are all available.
(4) Fully automatic control system.
(5)Easy to install and dismantle
(6) Temperature Alarm
(7) Data Logger
(8)PLC electric control ( LG,SIMENS, OMRON..famous parts)
(9) Refrigerant:R22,R404A
Components:
(1) Condensing unit: Germany Bitzer, America Copeland, Italy Frascold ,China brand Etc.
(2) Evaporator: FST air-cooler.
(3) Insulation Panel: PU,
(4) Other accessories: world-famous brands, like Danfoss, Castle, Every Control, Siemens, LG,Schneider
Application of cold room:
Food (meat,pork, beef,chicken freezer room, vegetable, fruit, dairy, drink chiller room ( cooler room...), Medicine, Chemical, Electronics...
Doors:
1).Swing door and sliding door for choice.
2).Swing door:manual opened,automatic,etc.
3).Door board made with special pressing technology PU material.
4).Door frame:color steel or stainless steel.
5).Surface material:color steel or stainless steel with protecting film.
Panels:
Cold room insulation panel:use 100%polyurethane insulation panel,density about 36~42kg/m3,with gasket,with flame retardant, fire-resistant panel thickness:50mm~200mm, standard width of panel is 960mm
Evaporator type
Air Cooled Type | Ceiling type DL (5-20℃）DD（-5~+5 ℃）DJ（-18~-20℃） |
|---|---|
Aluminum shelving | Customize -18 ℃ or -35℃ |
Evaporator Cooled Type | Evaporator Condenser DJS (-30~-40℃) |
Room size type
Room size | Mini | Small | Middle | Big |
|---|---|---|---|---|
Volume range | 200m³ | 200~1000m³ | 1000~5000m³ | >5000m³ |
Temperature table for reference
Cold storage goods | Temperature range |
|---|---|
Processing room | 10℃ |
Fruit, vegetable, dry food | 0~-5℃ |
Medicine, cake, pastry, chemical material | 0~-5℃ |
Ice storage room | -5~-10℃ |
Fish, meat storage | -18~-25℃ |
Deep freezer. | -25C~-35℃ |
Compressor type and condenser
Compressor type | Bitzer(Germany) | Frascold (Italy) | Copeland (US) | China brand |
|---|---|---|---|---|
Condenser | Air cooled | Aater cooled | Evaporator | |
Panels information
Office Foam panel | 50mm thickness |
|---|---|
Processing room 10℃ | 50mm/ 75mm PU |
-5℃ | 75mm/ 100mm PU |
-18℃ | 100mm/ 150mm PU |
-25C/ -35℃ | 150mm/200mm PU |
Panel steel cover | SS, GI, aluminum etc |
