Factory supply Cool Room for Fruit and Vegetable from China

FOB Price

US $10000.001 - 2 set

US $100000.003 - 3 set

group name: Cold Room

Min Order: 1 set

brand name: First cold chain + freeze food machine

model: FLK

Nearest port for product export: Tianjin Port, Shanghai Port, Ningbo Port, Qingdao Port

Delivery clauses under the trade mode: FOB, CFR, CIF, EXW, CIP, DDP, DAF

Acceptable payment methods: T/T, L/C

update time: Thu, 21 Nov 2024 18:15:36 GMT

contact supplier

Paramtents

Refrigerant R22 (R404A )Freon for Selection
Structure Assembled
Suitable for Factory
Refrigerating System Brand Compressor Unit
Usage Fresh Keeping, Frozen, Deep Freezer
Refrigerating System Brand Compressor Unit
Transport Package Sea Worthy Packing
After-Sales Service Assisting Service

Packging & Delivery

Min Order1 set

Briefing

Cold Storage Cold Room Cooling System , Blast Frezeer Room For Meat And Fish

Detailed

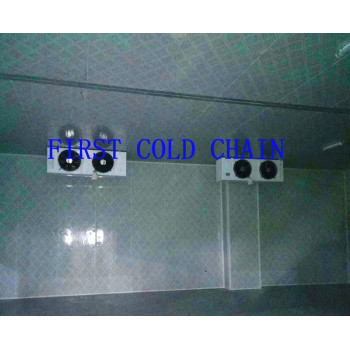

Cool Room Projects introduction
(1) Temperature range: -40ºC~+20ºC are all available.
(2) Size: Customize.
(3) Functions: fresh-keeping, freezing, quick-freezing, fire-proof, explosion-proof, air-conditioning are all available.
(4) Fully automatic control system.
(5)Easy to install and dismantle
(6) Temperature Alarm
(7) Data Logger
(8)PLC electric control ( LG,SIMENS, OMRON..famous parts)
(9) Refrigerant:R22,R404A
Components:
(1) Condensing unit: Germany Bitzer, America Copeland, Italy Frascold ,China brand Etc.
(2) Evaporator: FST air-cooler.
(3) Insulation Panel: PU,
(4) Other accessories: world-famous brands, like Danfoss, Castle, Every Control, Siemens, LG,Schneider
Application of cold room:
Food (meat,pork, beef,chicken freezer room, vegetable, fruit, dairy, drink chiller room ( cooler room...), Medicine, Chemical, Electronics...
Doors:
1).Swing door and sliding door for choice.
2).Swing door:manual opened,automatic,etc.
3).Door board made with special pressing technology PU material.
4).Door frame:color steel or stainless steel.
5).Surface material:color steel or stainless steel with protecting film.
Panels:
Cold room insulation panel:use 100%polyurethane insulation panel,density about 36~42kg/m3,with gasket,with flame retardant, fire-resistant panel thickness:50mm~200mm, standard width of panel is 960mm

Evaporator type

Air Cooled Type	Ceiling type DL (5-20℃）DD（-5~+5 ℃）DJ（-18~-20℃）
Aluminum shelving	Customize -18 ℃ or -35℃
Evaporator Cooled Type	Evaporator Condenser DJS (-30~-40℃)

Room size type

Room size	Mini	Small	Middle	Big
Volume range	200m³	200~1000m³	1000~5000m³	>5000m³

Temperature table for reference

Cold storage goods	Temperature range
Processing room	10℃
Fruit, vegetable, dry food	0~-5℃
Medicine, cake, pastry, chemical material	0~-5℃
Ice storage room	-5~-10℃
Fish, meat storage	-18~-25℃
Deep freezer.	-25C~-35℃
