China supply high effective Cold Storage / Cold Room for frozen food

FOB Price

US $150000.001 - 2 set

US $8000.003 - 3 set

group name: Cold Room

Min Order: 1 set

brand name: First cold chain + freeze food machine

model: FLK

Nearest port for product export: Tianjin Port, Shanghai Port, Ningbo Port, Qingdao Port

Delivery clauses under the trade mode: FOB, CFR, CIF, EXW, CIP, DDP, DAF

Acceptable payment methods: T/T, L/C

update time: Thu, 21 Nov 2024 17:59:18 GMT

contact supplier

Paramtents

Refrigerant R22 (R404A )Freon for Selection
Structure Assembled
Suitable for Factory
Refrigerating System Brand Compressor Unit
Usage Fresh Keeping, Frozen, Deep Freezer
Refrigerating System Brand Compressor Unit
Transport Package Sea Worthy Packing
After-Sales Service Assisting Service

Packging & Delivery

Min Order1 set

Briefing

Polyurethane insulation board design for cold room, the main steel structure to facilitate construction.

Detailed

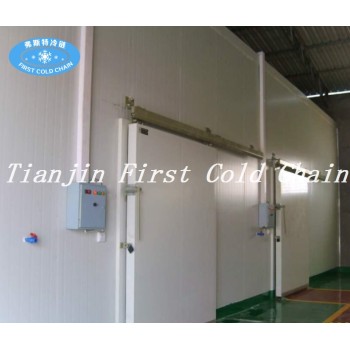

Cold Room Product Description

Cold Room Features:
1. Temperature range: -40º C ~ + 20º C are all available
2. Size: Customization.
3. Functions: Fresh-keep, freezing, quick-freezing, fire-proof, explosion-proof, air-conditioning are all available
4. Good performance, low noise and high reliability
5. World renowned brand refrigeration accessories, guarantee long use cycle.
6. The automatic high precision digital controller is easy to operate with high efficiency...
7. Adjustable indoor temperature saves up to 30% electricity.
Classification:
Cold storage temperature: -5 º C ~ + 5º C
Freezer storage temperature: -25 º C ~ -18 º C
Quick-frozen storage temperature: -40 º C ~ -35º C
The Constant temperature: Customer's request
Storage of produce: Customer's request
Components:
Condensing unit: Bitzer, Copeland, Maneurop, Fusheng
Evaporator: KELTESS air cooler.
Insulation Panel: PU, EPS
Other accessories: World-famous brands, like Danfoss, Castle, Every Control, Siemens, LG

Feature of freezer cold rooms ,refrigerated chiller and freezer ,cold room /chiller room, cold storage room, cooler room,Cold storage /cold store/ walk in freezer room / cold room, cold storage room, chiller room, cooling room:
Polyurethane insulation board design for cold room, the main steel structure to facilitate construction. Portable sliding doors, and out of cold storage more convenient, easy to operate.
Water defrosting evaporator defrost faster, save operating costs.

Cold storage door with anti-shock protection, an increase of reliability.
Application fields:
Biology, industry, military, food, florist, farming, medicine, logistics, hospitality, and food processing.

Evaporator type

Air Cooled Type	Ceiling type DL (5-20℃）DD（-5~+5 ℃）DJ（-18~-20℃）
Aluminum shelving	Customize -18 ℃ or -35℃
Evaporator Cooled Type	Evaporator Condenser DJS (-30~-40℃)

Room size type

Room size	Mini	Small	Middle	Big
Volume range	200m³	200~1000m³	1000~5000m³	>5000m³

Temperature table for reference

Cold Storage goods	Temperature range
Processing room	10℃
Fruit, vegetable, dry food	0~-5℃
Medicine, cake, pastry, chemical material	0~-5℃
Ice storage room	-5~-10℃
Fish, meat storage	-18~-25℃
Deep freezer.	-25C~-35℃

Compressor type and condenser

Compressor type	Bitzer(Germany)	Frascold (Italy)	Copeland (US)	China brand
Condenser	Air cooled	Aater cooled	Evaporator

Panels information

Office Foam panel	50mm thickness
Processing room 10℃	50mm/ 75mm PU
-5℃	75mm/ 100mm PU
-18℃	100mm/ 150mm PU
-25C/ -35℃	150mm/200mm PU
Panel steel cover	SS, GI, aluminum etc
