China first cold chain competitive 2000kg/h Spiral Freezer for Fish Freezing
- FOB Price
US $100000.001 - 2 set
US $90000.003 - 5 set
- group name
- FSL series spiral freezer
- Min Order
- 1 set
- brand name
- First cold chain + freeze food machine
- model
- FDSL
- Nearest port for product export
- Tianjin Port, Shanghai Port, Ningbo Port, Qingdao Port
- Delivery clauses under the trade mode
- FOB, CFR, CIF, EXW, CIP, DDP, DAF
- Acceptable payment methods
- T/T, L/C
- update time
- Thu, 21 Nov 2024 17:41:34 GMT
Paramtents
Refrigerant Freon
Structure Assembled
Suitable for Factory
Refrigeration System Brand Compressor Unit
Size Customized
Use Nature Production
Usage Food
Freezer Body Material 304 Stainless Steel
Specification CE ISO9001
Transport Package Seaworthy Plywood Case
Packging & Delivery
-
Min Order1 set
Briefing
Double Spiral quick freezer widely applied in quick-frozen seafoods, meat,dumplings, pasta, pizza and other fruit vegetable
Detailed

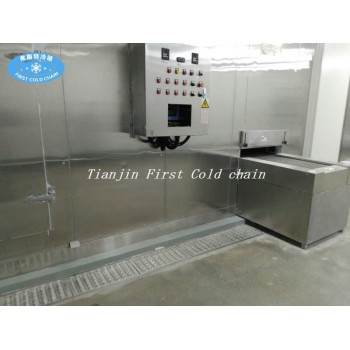

2000kg/h spiral freezer Product Description
FDSL series double spiral freezer machine is a kind of high efficiency, energy saving quick-frozen device
It covers an area of small, and the advantages of compact structure, database is big, become modern quick-frozen food companies preferred
It's made of 304 stainless steel except motor, blower impeller, evaporator pipe and fin, and electric elements.
This machine is completed with base plate of quick freezing machine; the users do not need to make the heat preservation fundation.
Spiral quick-freezing machine widely used in fried food, aquatic products, all kinds of pasta, prepared food, meat and other food
It covers an area of small, and the advantages of compact structure, database is big, become modern quick-frozen food companies preferred
It's made of 304 stainless steel except motor, blower impeller, evaporator pipe and fin, and electric elements.
This machine is completed with base plate of quick freezing machine; the users do not need to make the heat preservation fundation.
Spiral quick-freezing machine widely used in fried food, aquatic products, all kinds of pasta, prepared food, meat and other food
the 2000kg/h Spiral Freezer for Fish Freezing parameters as follow:
frozen product :fish
capacity: 2000kg/h
cooling capacity: 340kw (±40℃）
refrigerant :R404A/R507A/R717
inter/out temperature: +15/-18℃
inside room temperature:-38±3℃
freeze time :10-50min (adjust)
the spiral freezer body size: 10*7*4m
the materials use full stainless steel structure SUS304
the evaporator use large anti-rust aluminum finned tube group, the rest of the 304 stainless steel
the Electric Control Cabinet use Schneider Electric
the panels use double face stainless steel and Self-extinguishing Flame Retardant Polyurethane 150mm Thickness
the conveyor belt we could use 600mm,650mm,710mm etc ,according to clients choice.
