China high quality Spiral IQF Freezer 500kg/h for dumplings Shrimp or Fish

FOB Price

US $100000.01 - 2 set

US $90000.03 - 5 set

group name: FSL series spiral freezer

Min Order: 1 set

brand name: First cold chain + freeze food machine

model: FSL500

Nearest port for product export: Tianjin Port, Shanghai Port, Ningbo Port, Qingdao Port

Delivery clauses under the trade mode: FOB, CFR, CIF, EXW, CIP, DDP, DAF

Acceptable payment methods: T/T, L/C

update time: Thu, 21 Nov 2024 18:10:24 GMT

contact supplier

Paramtents

Refrigerant Freon
Structure Assembled
Suitable for Factory
Refrigeration System Brand Compressor Unit
Size Customized
Use Nature Production
Usage Food
Freezer Body Material 304 Stainless Steel
Specification CE ISO9001
Transport Package Seaworthy Plywood Case

Packging & Delivery

Min Order1 set

Briefing

We have rich experience in production techniques of food freezing equipment for vegetables, pasta, precooked food, ice creams

Detailed

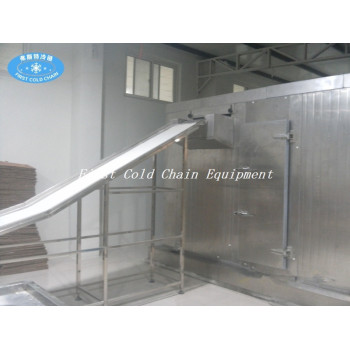

Spiral IQF freezer 500kg/h Product Description

Spiral freezers are mostly used for flour food freezing, meat freezing, seafood freezing and prepared food freezing
Structure:Stainless steel conveyor belt; equipped with safe guard both sides
Sandwich PUF panels laminated by stainless steel plate both sides floor panels are equipped
Door is equipped with frame heating device
Aluminum evaporators, variable fin pitches
Axial fans: stainless steel air box, aluminum blades
Complete welded stainless steel water discharging plate will be installed on top of floor panels. It will bring defrosting water out of cabinet through many stainless steel draining pipes
Drum, inlet device, outlet device and all structure parts are made of stainless steel
Control panel is made of stainless steel
Schneider or Siemens electric components

the 500kg/h spiral freezer parameters as follow:

frozen product :fish

capacity: 500kg/h

cooling capacity: 85kw (±40℃）

refrigerant :R404A/R507A/R717

inter/out temperature: +15/-18℃

inside room temperature:-38±3℃

freeze time :10-50min (adjust)

the spiral freezer body size: 5.5*4*2.5m

the materials use full stainless steel structure SUS304

the evaporator use large anti-rust aluminum finned tube group, the rest of the 304 stainless steel

the Electric Control Cabinet use Schneider Electric

the panels use double face stainless steel and Self-extinguishing Flame Retardant Polyurethane 150mm Thickness

the conveyor belt we could use 600mm,650mm,710mm etc ,according to clients choice.

we have plastics and stainless steel materials
