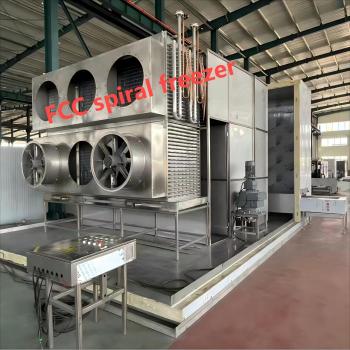

First Cold Chain Industrial Spiral Freezer
First Cold Chain provides single spiral freezer and double spiral freezer with full non-standard customization, designed for continuous high-efficiency freezing and cooling in food processing industry.
Key Product Parameters
- Machine Type: Single Spiral Freezer, Double Spiral Freezer
- Capacity Range: 200kg per hour to 5 tons per hour
- Mesh Belt Width: 400mm–1000mm (customizable)
- Inlet & Outlet Layout: Low-in High-out, High-in Low-out (Single); Low-in Low-out (Double)
- Refrigeration System: Freon, Ammonia, CO2 Cascade Refrigeration (optional)
Product Features & Advantages
- High automation level, stable 24-hour continuous operation, low labor cost and high production efficiency.
- Compact vertical structure, small footprint and high space utilization rate, suitable for limited workshop space.
- Uniform air circulation and fast freezing speed, well preserved food texture, moisture and shelf life.
- Optional plastic steel mesh belt, effectively prevent adhesion of chicken breast, meat and sticky food.
- Dual functions for quick freezing and high-temperature food cooling, wide application and high cost performance.
- Full non-standard customization on capacity, size, structure, layout and configuration for different production demands.
Application Scope
Widely used for quick freezing and cooling of fried food, pastries, meat, poultry, seafood, pasta, prepared food and other food products. Ideal for large-scale food factories with stable and high-volume production.
