China Tunnel Freezers 300kg/h with Stainless Steel and well know brand compressor for frozen food

FOB Price

US $150000.001 - 2 set

US $10000.003 - 10 set

group name: FSW series Tunnel freezer

Min Order: 1 set

brand name: First cold chain + freeze food machine

model: FSW

Nearest port for product export: Tianjin Port, Shanghai Port, Ningbo Port, Qingdao Port

Delivery clauses under the trade mode: FOB, CFR, CIF, EXW, CIP, DDP, DAF

Acceptable payment methods: T/T, L/C

update time: Sun, 19 May 2024 12:34:59 GMT

contact supplier

Paramtents

Refrigerant Freon
Structure Assembled
Suitable for Factory
Refrigeration System Brand Compressor Unit
Size Customized
Use Nature Production
Usage Food
Freezer Body Material 304 Stainless Steel
Specification CE ISO9001
Transport Package Seaworthy Plywood Case

Packging & Delivery

Min Order1 set

Briefing

The Tunnel Freezer is designed to freeze a wide variety of squid, fish, fillets, buns, poultry, prepared food, bulky food.etc

Detailed

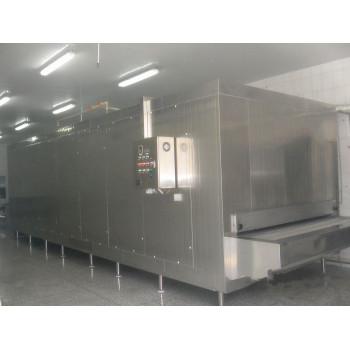

China Tunnel Freezers 300kg/h Product Description

The tunnel freezer is widely used in quick-freezing strip, cubic or grain food, such as ice cream, shrimp meat, shrimp, sliced fish, meat dumpling, divided meat and chicken,.Short freezing time, adopted the good effect cross ventilation,

Matched with double speed electric motor, widen the use bound as well as saving the energy.

Air blower is divided into cross blast from right and left, mixed blast and top blast according to different frozen products which makes perfect freezing, quality and efficiency

Simple structure,convenient operation,long service life.

The panels adopts double stainless steel sandwich poyurethane insulation board,insulation performance is good,internal componets using high-quality stainless steel SUS304,easy cleaning,HACCP requirements.

the 300kg/h Tunnel freezer parameters as follow:

frozen product :meat

capacity: 300kg/h

cooling capacity: 45kw (±40℃）

refrigerant :R404A/R507A/R717

inter/out temperature: +15/-18℃

inside room temperature:-38±3℃

freeze time :10-50min (adjust)

the spiral freezer body size: 12*2.3*2.4m

the materials use full stainless steel structure SUS304

the evaporator use large anti-rust aluminum finned tube group, the rest of the 304 stainless steel

the Electric Control Cabinet use Schneider Electric

the panels use double face stainless steel and Self-extinguishing Flame Retardant Polyurethane 150 mm Thickness

the conveyor belt we could use 2200 mm 1800 mm etc ,according to clients choice.
