China first cold chain supply 100kg/h tunnel freezer for freeze egg tart

FOB Price

US $30000.001 - 2 set

US $40000.003 - 10 set

group name: FSW series Tunnel freezer

Min Order: 1 set

brand name: First cold chain + freeze food machine

model: FSW

Nearest port for product export: Tianjin Port, Shanghai Port, Ningbo Port, Qingdao Port

Delivery clauses under the trade mode: FOB, CFR, CIF, EXW, CIP, DDP, DAF

Acceptable payment methods: T/T, L/C

update time: Thu, 21 Nov 2024 17:51:44 GMT

contact supplier

Paramtents

Refrigerant Freon
Structure Assembled
Suitable for Factory
Refrigeration System Brand Compressor Unit
Size Customized
Use Nature Production
Usage Food
Freezer Body Material 304 Stainless Steel
Specification CE ISO9001
Transport Package Seaworthy Plywood Case

Packging & Delivery

Min Order1 set

Briefing

the tunnel freezer 100kg/h with full stainless steel.
the tunnel freezer with Bitzer compressor and the quality reliable.

Detailed

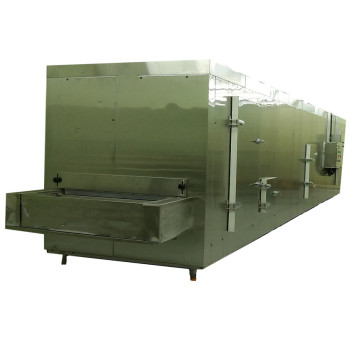

First cold chain tunnel freezer 100kg/h

This tunnel freezer 100kg/h suitable for kinds of meat seafood,rice product quick freeze ,the tunnel freezer with bitzer compressor unit ,the inside temperature can reach - 35℃;the product tem -18℃.

suitable for small type factory;

less investment and quick response;

shorter time freeze;

better freeze effective;

save labor costs ;

installation convenient ;

operation simple.

quiality stable.

Item		FSW100
Product		eggs tart
Capacity		100kg/h
In/Out Temp.		+15℃ to -18℃
Freezer Temp.		-35t o -40℃
In/Out Time		10-50min
Refrigerant		R404A
Consumption		20kw
Freezing Container Thickness		150mm
Product Height		≤100mm
Belt Width		1300mm
Product Input Conveyor/Output Conveyor		600 mm
Water Input Pressure		≥3 kg/cm2
Freezer Power		2.95 KW
In/out Guard Length		600/600 mm
*Freezer Size（LWH）*		7000×1500×2200mm
Freezer Body Material	Duplex stainless steel polyurethane insulation board density or 40 kg/m3, the thickness of 150 mm, 304 stainless steel outer plate thickness more than 0.8 mm
Main Electric Brand	Schneider(France)
Belt and Speed	Food-grade plastic mesh belt; Frequency conversion step less speed regulation
Slide Track Material	Ultrahigh molecular polyethylene material.
Internal Structure	All made of 304 Stainless Steel Material, Argon arc welding
Evaporator	Effective from large aluminum finned tube set, stainless steel panel stent
Fan and Motor	Aluminum alloy stainless steel duct fan low noise and waterproof electric power consumption
