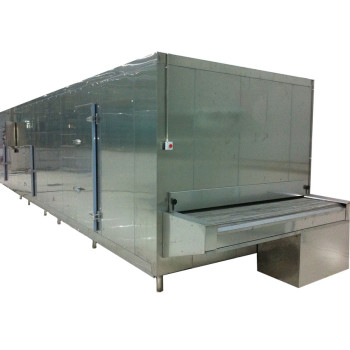

Tunnel Freezer for frozen chicken and other pasta food 500kg/h in China
- FOB Price
US $30000.01 - 2 set
US $180000.03 - 10 set
- group name
- FSW series Tunnel freezer
- Min Order
- 1 set
- brand name
- First cold chain + freeze food machine
- model
- FSW
- Nearest port for product export
- Tianjin Port, Shanghai Port, Ningbo Port, Qingdao Port
- Delivery clauses under the trade mode
- FOB, CFR, CIF, EXW, CIP, DDP, DAF
- Acceptable payment methods
- T/T, L/C
- update time
- Thu, 21 Nov 2024 18:09:13 GMT
Paramtents
Refrigerant Freon
Structure Assembled
Suitable for Factory
Refrigeration System Brand Compressor Unit
Size Customized
Use Nature Production
Usage Food
Freezer Body Material 304 Stainless Steel
Specification CE ISO9001
Transport Package Seaworthy Plywood Case
Packging & Delivery
-
Min Order1 set
Briefing
China tunnel freezer Aluminum evaporator with variable fin spacing.
High heat removal capacity. Easy to clean.
High heat removal capacity. Easy to clean.
Detailed
Tunnel freezer Product Description
The tunnel freezer is widely used in quick-freezing strip, cubic or grain food, such as ice cream, shrimp meat, shrimp, sliced fish, meat dumpling, divided meat and chicken,.
Stainless steel mesh belt transmission
Short freezing time, adopted the good effect cross ventilation, with the frozen time 10 to 50mins.
Matched with double speed electric motor, widen the use bound as well as saving the energy.
Air blower is divided into cross blast from right and left, mixed blast and top blast according to different frozen products which makes perfect freezing, quality and efficiency
500kg/h Tunnel Freezer for frozen chicken Parameters
Stainless steel mesh belt transmission
Short freezing time, adopted the good effect cross ventilation, with the frozen time 10 to 50mins.
Matched with double speed electric motor, widen the use bound as well as saving the energy.
Air blower is divided into cross blast from right and left, mixed blast and top blast according to different frozen products which makes perfect freezing, quality and efficiency
500kg/h Tunnel Freezer for frozen chicken Parameters
Item | FSW500（ Frozen food） | |
|---|---|---|
Product | Frozen food | |
Capacity | 500kg/h | |
In/Out Temp. | +15℃ to -18℃ | |
Freezer Temp. | -38℃ | |
In/Out Time | 10-50min | |
Refrigerant | R404A | |
Consumption | 90kw | |
Freezing Container Thickness | 150mm | |
Product Height | ≤100mm | |
Belt Width | 2200mm | |
Product Input Conveyor/Output Conveyor | 1000 mm | |
Water Input Pressure | ≥3 kg/cm2 | |
Freezer Power | 10.3 KW | |
Freezer Size（L*W*H） | 13500×2700×2500mm | |
Freezer Body Material | Duplex stainless steel polyurethane insulation board density or 40 kg/m3, the thickness of 150 mm, 304 stainless steel outer plate thickness more than 0.8 mm | |
Main Electric Brand | Schneider(France) | |
Belt and Speed | Food-grade plastic mesh belt; Frequency conversion stepless speed regulation | |
Slide Track Material | Ultrahigh molecular polyethylene material. | |
Internal Structure | All made of 304 Stainless Steel Material, Argon arc welding | |
Evaporator | Effective from large aluminum finned tube set, stainless steel panel stent | |
Fan and Motor | Aluminum alloy stainless steel duct fan low noise and waterproof electric power consumption | |
- FSW500kg/h TUNNEL FREEZER TECHNICAL PARAMETERS
